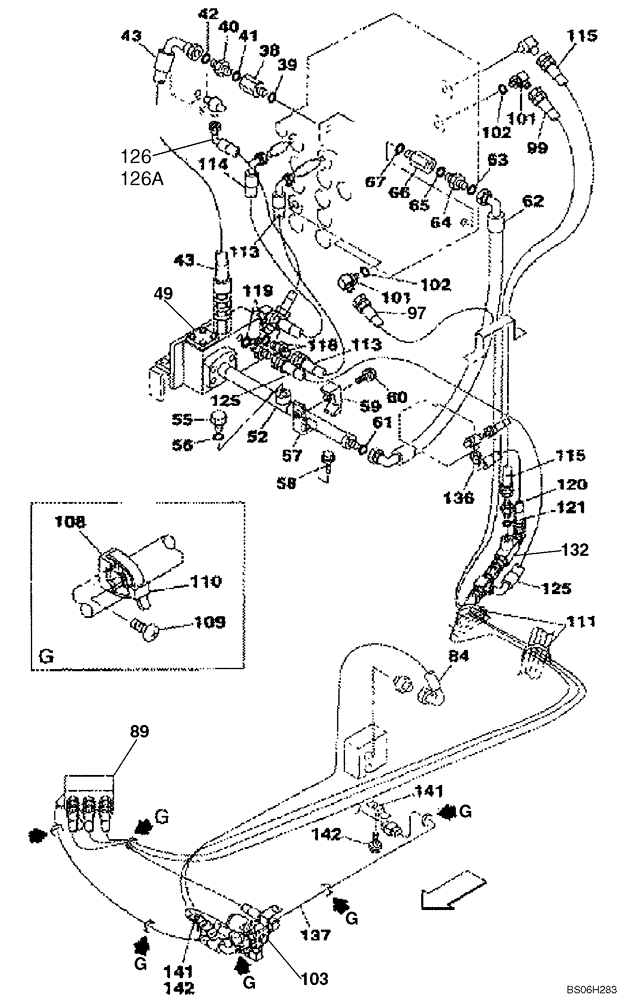

Запчасти Case CX210N (08-59) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (Feb 24 2012 9:49AM) (08) - HYDRAULICS

38

152012A1

ELEC CONNECTOR

Incl. 39

1шт.

39

154503A1

O-RING

1шт.

40

KHJ1348

ADAPTER

Incl. 41

1шт.

41

154503A1

O-RING

1шт.

42

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

43

KRJ5936

HYDRAULIC HOSE,19.00 mm ID x 560.00 mm

See Figure 08-60

1шт.

49

KHJ1340

VALVE

See Figure(s) 08-60, 08-68

1шт.

52

KRJ5940

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

55

152924A1

PLUG

Incl. 56

1шт.

56

154503A1

O-RING

1шт.

57

KRJ5939

BRACKET

1шт.

58

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

59

151486A1

CLAMP BRACKET

1шт.

60

627-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

61

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

62

KRJ5937

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

1шт.

63

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

64

KHJ1348

ADAPTER

Incl. 65

1шт.

65

154503A1

O-RING

1шт.

66

159198A1

ADAPTER

Incl. 67

1шт.

67

154503A1

O-RING

1шт.

84

159235A1

HYDRAULIC HOSE

See Figure 08-61, 850 mm (KRJ3572)

1шт.

89

KHJ17100

VALVE PRESSURE RELIE

See Figure 08-60, Replaces KHJ1655

1шт.

97

151904A1

HOSE,6.3mm ID x 3100mm L

1шт.

99

165397A1

HYDRAULIC HOSE

1шт.

101

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 102

2шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

162538A1

VALVE

Solenoid; See Figure(s) 08-60, 08-64

1шт.

108

150860A1

COLLAR

5шт.

109

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

110

150496A1

MOUNTING CLIP

250 mm (10 in)

5шт.

111

150071A1

MOUNTING CLIP

2шт.

113

159235A1

HYDRAULIC HOSE

1шт.

114

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

115

164728A1

HYDRAULIC HOSE,6.30 mm ID x 1150.00 mm

1шт.

118

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 119

2шт.

119

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

120

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 121

1шт.

121

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

125

164791A1

HOSE ASSY.

1шт.

126

162563A1

HOSE ASSY.

See Figure 08-60; No Longer Used, Service With 159235A1, Ref 126A

1шт.

126a

159235A1

HYDRAULIC HOSE

See Figure 08-60

1шт.

132

KHJ17090

VALVE PRESSURE RELIE

See Figure 08-60; Replaces 158186A1

1шт.

136

167353A1

HOSE,400.00 mm

1шт.

137

KHR3351

HARNESS

Replaces KHR2718

1шт.

141

165405A1

CLIP

2шт.

142

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
