Запчасти Case CX210N (08-53) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

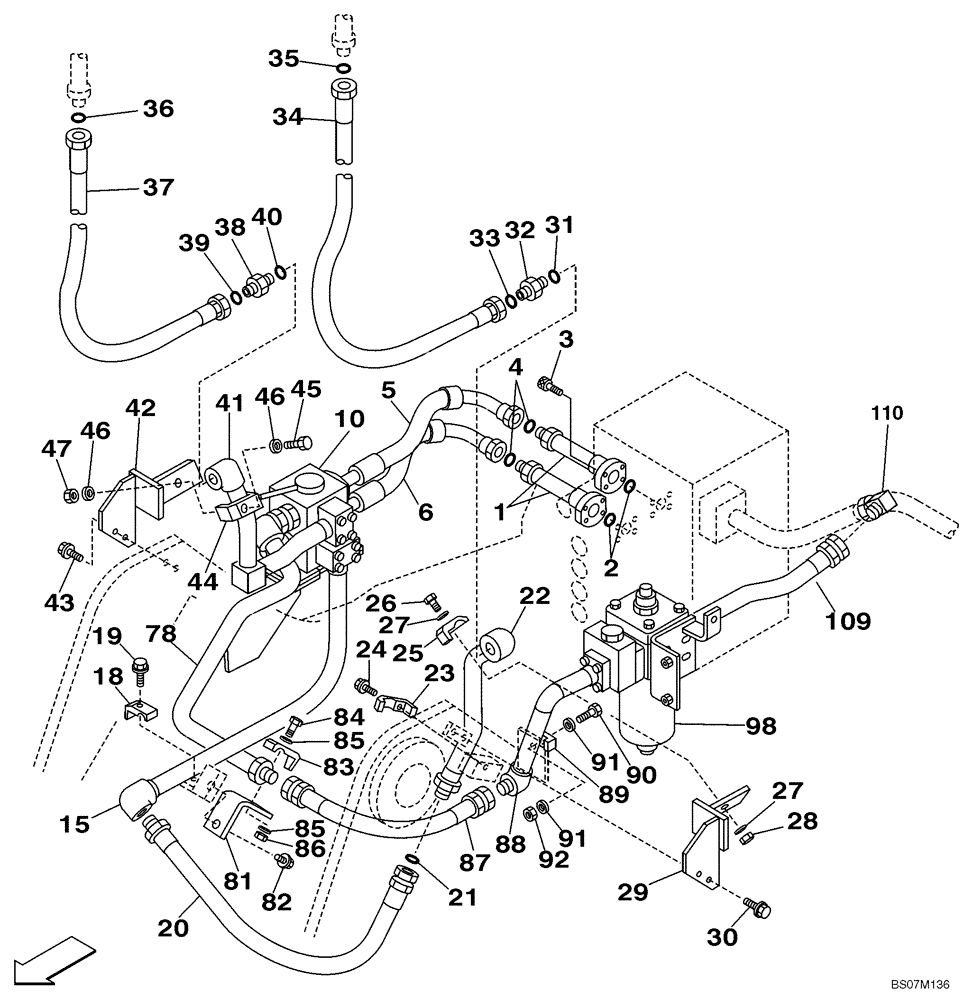

Схема запчастей Case CX210N - (08-53) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS
84
81
43
32
26
10
37
44
41
33
27
110
85
86
30
21
98
25
47
46
4
40
18
19
109
91
6
89
1
45
39
23
3
2
90
22
91
24
83
31
35
20
82
88
38
87
5
92
78
15
46
27
85
42
34
28
29
36

Артикул

Название

Примечание

Количество

1

KRJ5920

TUBE ASSY.,26 mm ID x 34 mm OD

2шт.

2

154548A1

O-RING

2шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

5

KRJ5926

HYDRAULIC HOSE,25.40 mm ID x 725.00 mm

1шт.

6

KRJ5927

HYDRAULIC HOSE,25.40 mm ID x 575.00 mm

1шт.

10

KHJ1609

VALVE

See Figure 08-56, 08-66

1шт.

15

KRJ6173

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

18

152974A1

COLLAR

1шт.

19

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

20

KRJ5929

HYDRAULIC HOSE,25.40 mm ID x 1010.00 mm

1шт.

21

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

22

KRJ6174

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

23

152974A1

COLLAR

1шт.

24

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

25

150777A1

COLLAR

1шт.

26

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

27

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

28

829-1416

NUT,M16, Cl 10

1шт.

29

KRJ6314

BRACKET

1шт.

30

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

31

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

32

KHJ1349

ADAPTER

Incl. 33

1шт.

33

154523A1

O-RING

1шт.

34

KRJ5930

HYDRAULIC HOSE,25.40 mm ID x 1540.00 mm

1шт.

35

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

36

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

37

KRJ5930

HYDRAULIC HOSE,25.40 mm ID x 1540.00 mm

1шт.

38

KHJ1349

ADAPTER

Incl. 39

1шт.

39

154523A1

O-RING

1шт.

40

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

41

KRJ6176

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

42

KRJ6313

BRACKET

1шт.

43

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

44

150777A1

COLLAR

1шт.

45

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

46

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

47

829-1416

NUT,M16, Cl 10

1шт.

78

KRJ6324

TUBE ASSY.

1шт.

81

KRJ5968

BRACKET

1шт.

82

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

83

152974A1

COLLAR

1шт.

84

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

85

150811A1

WASHER

M12

2шт.

86

829-1412

NUT,M12, Cl 10.9

1шт.

87

KRJ6761

HYDRAULIC HOSE

Replaces KRJ6178

1шт.

88

KRJ6179

TUBE ASSY.

1шт.

89

152974A1

COLLAR

1шт.

90

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

1шт.

91

150811A1

WASHER

M12

2шт.

92

829-1412

NUT,M12, Cl 10.9

1шт.

98

159704A1

FILTER ASSY

See Figure 08-56, 08-70

1шт.

109

KRJ12280

HYDRAULIC HOSE,440.00 mm

Replaces KRJ5924

1шт.

110

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

1шт.

Выбрано товаров: 56
