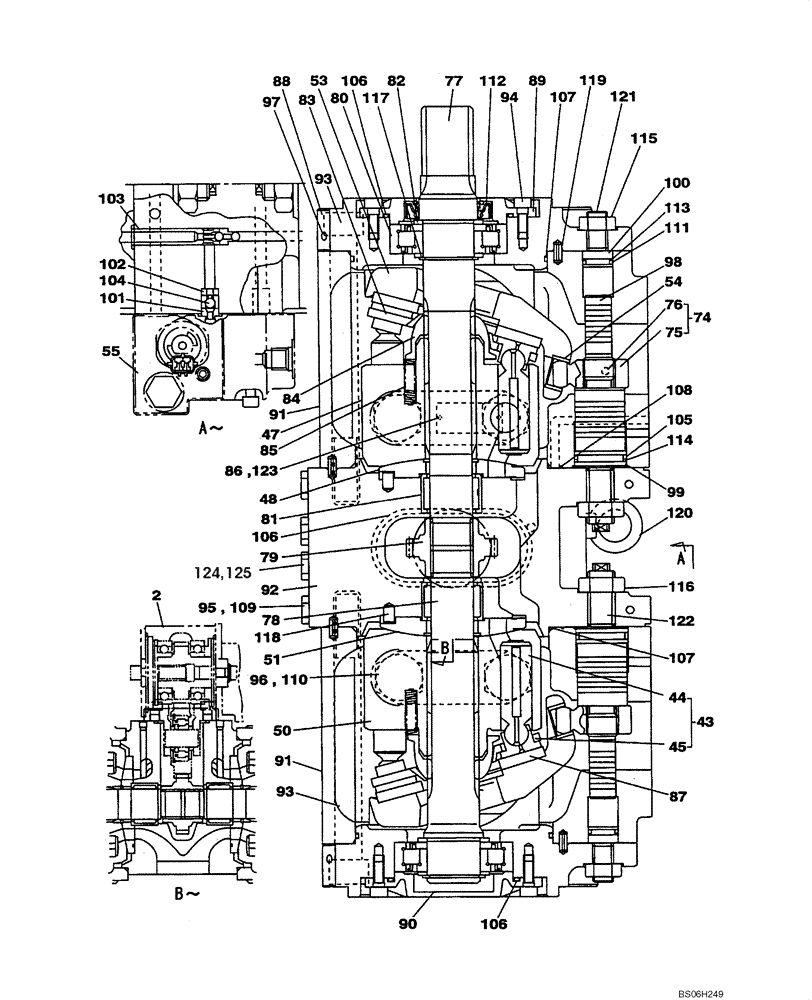

Запчасти Case CX210N (08-30) - PUMP ASSY, HYDRAULIC - PISTON (Aug 13 2010 12:14PM) (08) - HYDRAULICS

1

KRJ6199

PUMP, HYDRAULIC

Includes All Parts On Figures 08-30 - 08-34

1шт.

1

87341979

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP - N.A. Only

1шт.

1

87341980

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

1

87341979

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - N.A. Only

1шт.

1

87341980

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

2

LC00159

HYDRAULIC PUMP

See Figure 08-31

1шт.

43

160154A1

PISTON

Incl. 44, 45

1шт.

44

NSS

NOT SOLD SEPARAT

Piston

1шт.

45

NSS

NOT SOLD SEPARAT

End

1шт.

46

LS00121

CYLINDER BLOCK

Incl. 47, 48

1шт.

47

NSS

NOT SOLD SEPARAT

Block

1шт.

48

NSS

NOT SOLD SEPARAT

Plate

1шт.

49

LS00123

CYLINDER BLOCK

Incl. 50, 51

1шт.

50

NSS

NOT SOLD SEPARAT

Block

1шт.

51

NSS

NOT SOLD SEPARAT

Plate

1шт.

52

LR00552

PLATE

Incl. 53, 54

1шт.

53

NSS

NOT SOLD SEPARAT

Plate

1шт.

54

NSS

NOT SOLD SEPARAT

Bushing

1шт.

55

LW00310

PILOT VALVE

See Figure 08-33

1шт.

74

160161A1

LEVER ASSY.

Incl. 75, 76

2шт.

75

NSS

NOT SOLD SEPARAT

Pin

1шт.

76

NSS

NOT SOLD SEPARAT

Pin, Split

1шт.

77

160033A1

DRIVE SHAFT

1шт.

78

160034A1

DRIVE SHAFT

1шт.

79

LB00535

COUPLING

1шт.

80

NSS

NOT SOLD SEPARAT

Bearing

2шт.

81

NSS

NOT SOLD SEPARAT

Bearing

2шт.

82

156963A1

SPACER

4шт.

83

156959A1

HOLDER

2шт.

84

169288A1

BUSHING

2шт.

85

156960A1

SPRING

18шт.

86

NSS

NOT SOLD SEPARAT

Plate, Registration

1шт.

87

160113A1

PLATE

2шт.

88

TPP0080

SUPPORT

Gear Wheel

2шт.

89

160334A1

COVER

1шт.

90

LZP0183

COVER

Replaces TZP0003

1шт.

91

160604A1

HOUSING

2шт.

92

TJ00067

VALVE BLOCK

Replaces LJ00694

1шт.

93

167078A1

BOLT,M8 x 40mm, Cl 12.9

M8 x 40; 12,9

8шт.

94

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

8шт.

95

155496A1

PLUG

2шт.

96

155471A1

PLUG

4шт.

97

LK00003

PLUG

27шт.

98

160212A1

PISTON

2шт.

99

160115A1

STOP

2шт.

100

160116A1

STOP

2шт.

101

TPP0095

VALVE SEAT

4шт.

102

TPP0094

STOP

2шт.

103

NSS

NOT SOLD SEPARAT

Spool

1шт.

104

156966A1

BALL

4шт.

105

LE01176

O-RING

O-Ring

2шт.

106

154713A1

O-RING

3шт.

107

154805A1

O-RING

4шт.

108

154455A1

O-RING

16шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

110

154503A1

O-RING

4шт.

111

LE01177

O-RING

O-Ring

2шт.

112

LE01178

OIL SEAL

Seal

1шт.

113

153970A1

BACK-UP RING

2шт.

114

154017A1

BACK-UP RING

2шт.

115

NSS

NOT SOLD SEPARAT

Nut

2шт.

116

162R020VR

NUT

M20; 10

2шт.

117

800-1140

SNAP RING,M40, Ext

2шт.

118

156954A1

DOWEL

2шт.

119

NSS

NOT SOLD SEPARAT

Pin, Roll

4шт.

120

126R010SR

EYEBOLT

BOLT, EYE

2шт.

121

160295A1

SET SCREW

2шт.

122

160296A1

SET SCREW

2шт.

123

LA00027

RIVET

2шт.

124

TLM0023

PLUG

2шт.

125

154475A1

O-RING

2шт.
