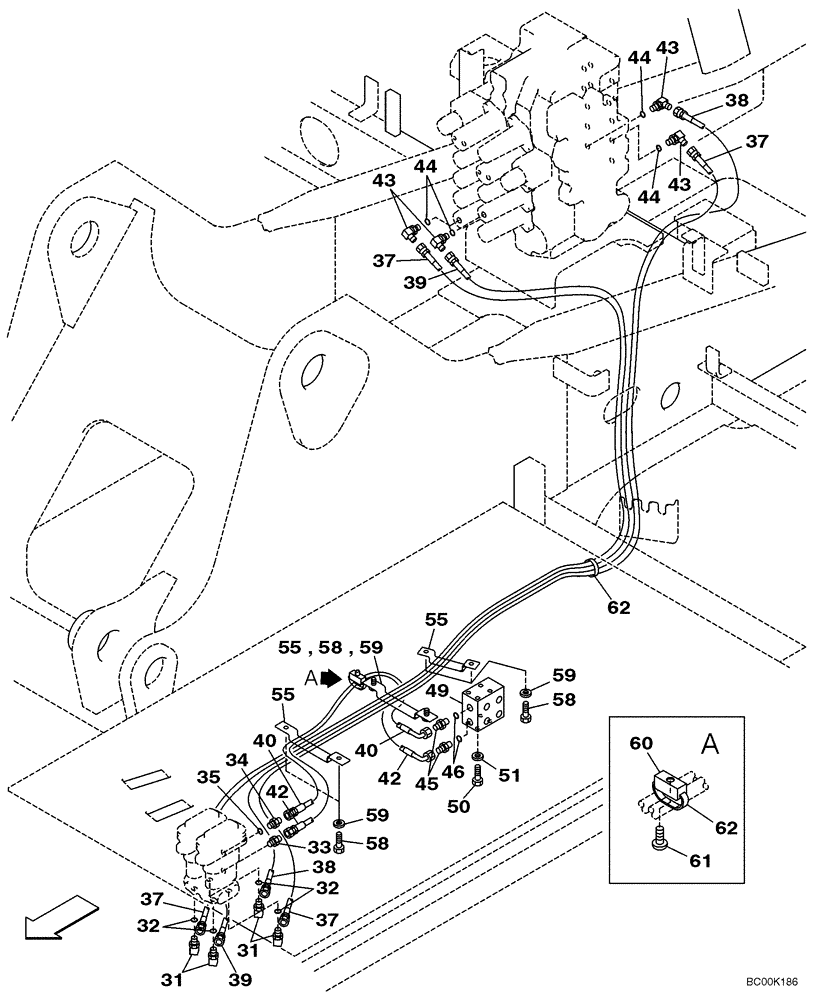

Запчасти Case CX210N (08-15) - PILOT CONTROL LINES, TRAVEL - MODELS WITHOUT LOAD HOLD & WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
MODELS WITHOUT LOAD HOLD
1шт.
MODELS WITH ALTERNATE JOYSTICK CONTROL PATTERN
1шт.
31
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 32
4шт.
32
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
33
161841A1
HYD CONNECTOR
1шт.
34
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 35
1шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
37
157851A1
HOSE
2850 mm (112-1/4 in)
2шт.
38
152299A1
HOSE,63.00 mm ID x 2950.00 mm
1шт.
39
157203A1
HOSE,2800.00 mm
2800 mm (110-1/4 in)
1шт.
40
159019A1
HOSE ASSY.
900 mm (35-1/2 in)
1шт.
42
KAJ3524
HYDRAULIC HOSE
1шт.
43
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 44
4шт.
44
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
45
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 46
2шт.
46
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
49
KRJ5903
MANIFOLD
1шт.
50
828-8100
BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9
4шт.
51
153081A1
WASHER
4шт.
55
KHJ1951
CLAMP
Replaces KHJ1394
3шт.
58
627-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd
6шт.
59
153081A1
WASHER
6шт.
60
150860A1
COLLAR
1шт.
61
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
62
150071A1
MOUNTING CLIP
2шт.
Выбрано товаров: 25
