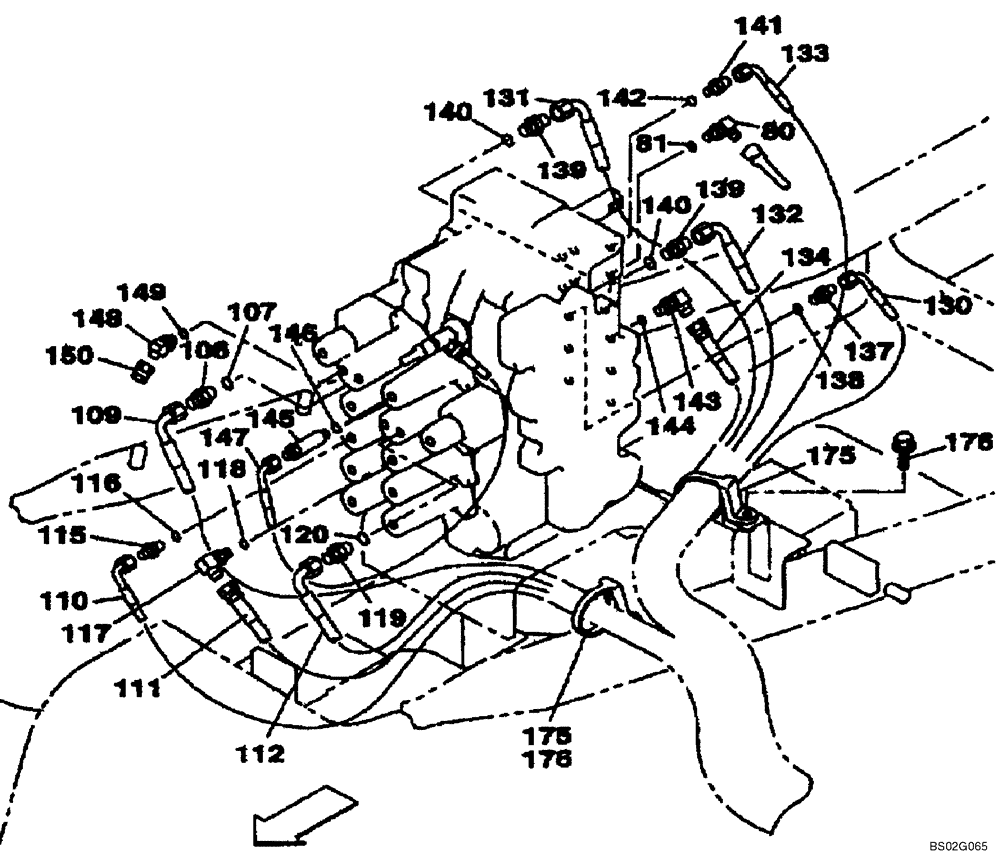

Запчасти Case CX210LR (08-22) - PILOT CONTROL LINES, CONTROL VALVE (08) - HYDRAULICS

80

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 81

1шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 107

1шт.

107

154475A1

O-RING

1шт.

109

162565A1

HOSE ASSY.

1000 mm (39-3/8 in); See Figure 08-19

1шт.

110

KHJ1608

HOSE

See Figure 08-18

1шт.

111

159071A1

HOSE

See Figure 08-18

1шт.

112

159224A1

HOSE ASSY.

900 mm (35-1/2 in); See Figure 08-19

1шт.

115

159848A1

ORIFICE

Special; Incl. 116

1шт.

116

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

117

153559A1

ELBOW

Incl. 118

1шт.

118

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

119

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 120

1шт.

120

154475A1

O-RING

1шт.

130

161657A1

HOSE ASSY.

1600 mm (63 in); See Figure 08-18

1шт.

131

161492A1

HOSE

See Figure 08-19

1шт.

132

KHJ1606

HYDRAULIC HOSE

See Figure 08-19

1шт.

133

162648A1

HOSE

See Figure 08-19

1шт.

134

152753A1

HOSE,95.00 mm ID x 1100.00 mm

See Figure 08-19

1шт.

137

159848A1

ORIFICE

Incl. 138

1шт.

138

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

139

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 140

2шт.

140

154475A1

O-RING

1шт.

141

162366A1

ADAPTER

Incl. 142

1шт.

142

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

153559A1

ELBOW

Incl. 144

1шт.

144

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

145

163104A1

ADAPTER

Incl. 146

1шт.

146

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

147

159043A1

HOSE ASSY.

1шт.

148

150933A1

ELBOW

Incl. 149

1шт.

149

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

150

158842A1

PLUG

1шт.

175

KHR2582

CLAMP

2шт.

176

KHJ2298

BOLT,Spcl

2шт.
