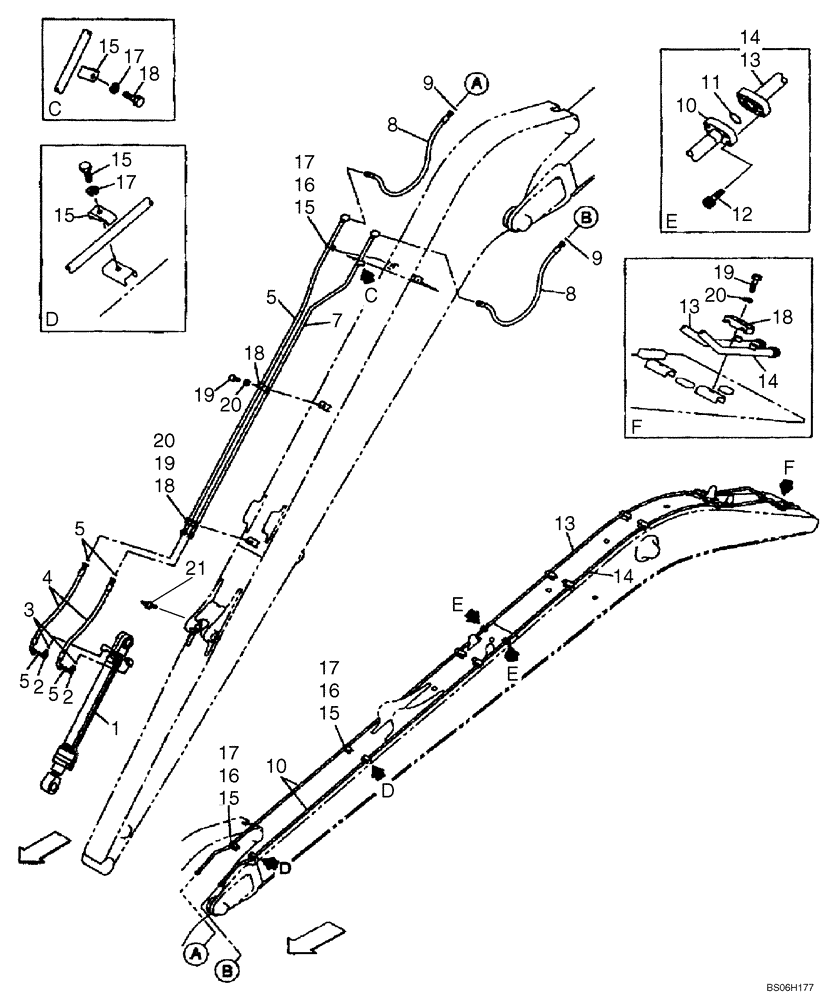

Запчасти Case CX210LR (08-13) - HYDRAULICS - BUCKET, 6,4 METER (21 FT) ARM (08) - HYDRAULICS

1

KNV1618

BUCKET CYLINDER

Bucket; See Figure 08-49

1шт.

2

KHJ1804

ELBOW

Incl. 3

2шт.

3

154503A1

O-RING

2шт.

4

KRV2904

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

2шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

6

KRV2900

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

7

KRV2901

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

8

KNV1154

HYDRAULIC HOSE,19.00 mm ID x 1450.00 mm

2шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KRV2899

HYD TUBE,20.8 mm ID x 27.2 mm OD

2шт.

11

154528A1

O-RING

2шт.

12

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

13

KRV3146

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

14

KRV3147

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

15

151486A1

CLAMP BRACKET

6шт.

16

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

6шт.

17

892-11012

LOCK WASHER,M12

6шт.

18

159742A1

COLLAR

3шт.

19

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

20

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

3шт.

21

153630A1

LUBE NIPPLE

1шт.
