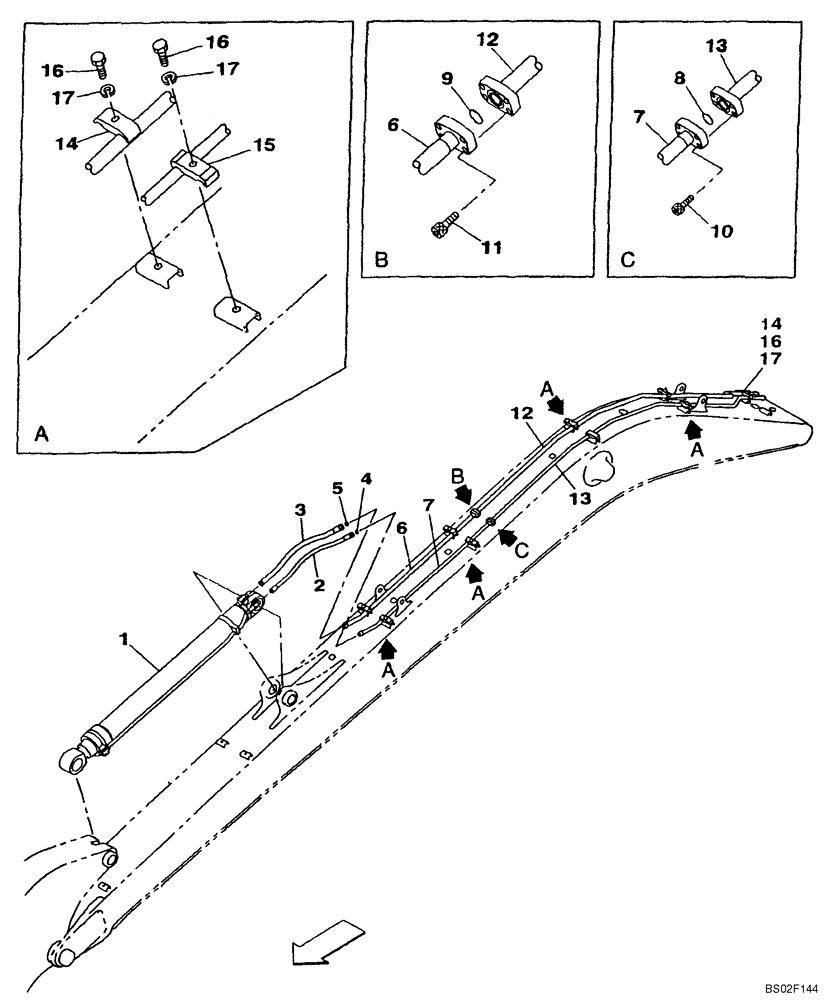

Запчасти Case CX210LR (08-12) - HYDRAULICS - ARM CYLINDER LINE (08) - HYDRAULICS

1

162862A1

HYDRAULIC CYLINDER

Arm; See Figure 8-48

1шт.

2

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

1шт.

3

KRV2406

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KRV2894

HYD TUBE,26 mm ID x 34 mm OD

1шт.

7

KRV2895

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

8

154528A1

O-RING

1шт.

9

154548A1

O-RING

1шт.

10

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

11

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

12

KRV2892

HYD TUBE,26 mm ID x 34 mm OD

1шт.

13

KRV2893

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

14

151489A1

CLAMP

5шт.

15

159742A1

COLLAR

4шт.

16

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

9шт.

17

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

9шт.
