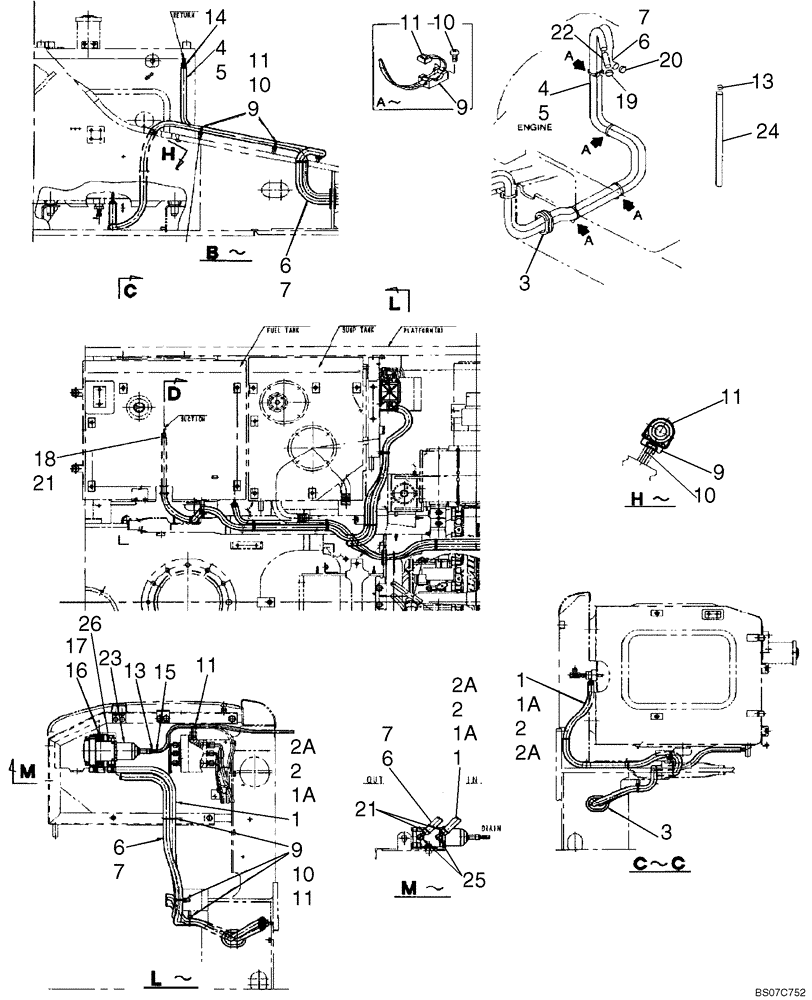

Запчасти Case CX210LR (03-02A) - FUEL LINES (P.I.N. DAC212385 - ) (03) - FUEL SYSTEM

1

KHH0502

FUEL HOSE

No Longer Used, For Service Order KHH11200

1шт.

1a

KHH11200

FUEL HOSE

1шт.

2

157923A1

PLASTIC-RUBBER TUBE

Used With Ref 1, KHH0522 Hose

1шт.

2a

KMR0849

PLASTIC-RUBBER TUBE

Used With Ref 1A, KHH11200

1шт.

3

KRH1393

GROMMET

1шт.

4

KHH0429

FUEL HOSE

1шт.

5

158070A1

PLASTIC-RUBBER TUBE

1шт.

6

KHH0503

FUEL HOSE

1шт.

7

157308A1

PLASTIC-RUBBER TUBE

2шт.

9

150860A1

COLLAR

10шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10шт.

11

150496A1

MOUNTING CLIP

250 mm (10 in)

11шт.

13

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

14

KHH0405

MOUNTING CLIP

1шт.

15

157628A1

FUEL TUBE,9.5 mm ID, 14.5 mm OD

1шт.

16

KHH10390

WASHER

2шт.

17

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

18

KHH0417

SPACER

1шт.

19

157704A1

CLAMP

1шт.

20

KHH0418

HOSE CLIP

1шт.

21

KHH0438

HOSE CLIP

3шт.

22

151470A1

SPACER

1шт.

23

336429A2

FUEL FILTER

See Figure 03-02C

1шт.

24

KHH0388

HOSE

700 mm (27-1/2 in); Cut From KHH0427

1шт.

25

86977972

FITTING,90 Degree, 1/2" Hose x 3/4"-16 ORB Beaded

2шт.

26

214389

PLUG,3/4" - 16 ORB

2шт.
