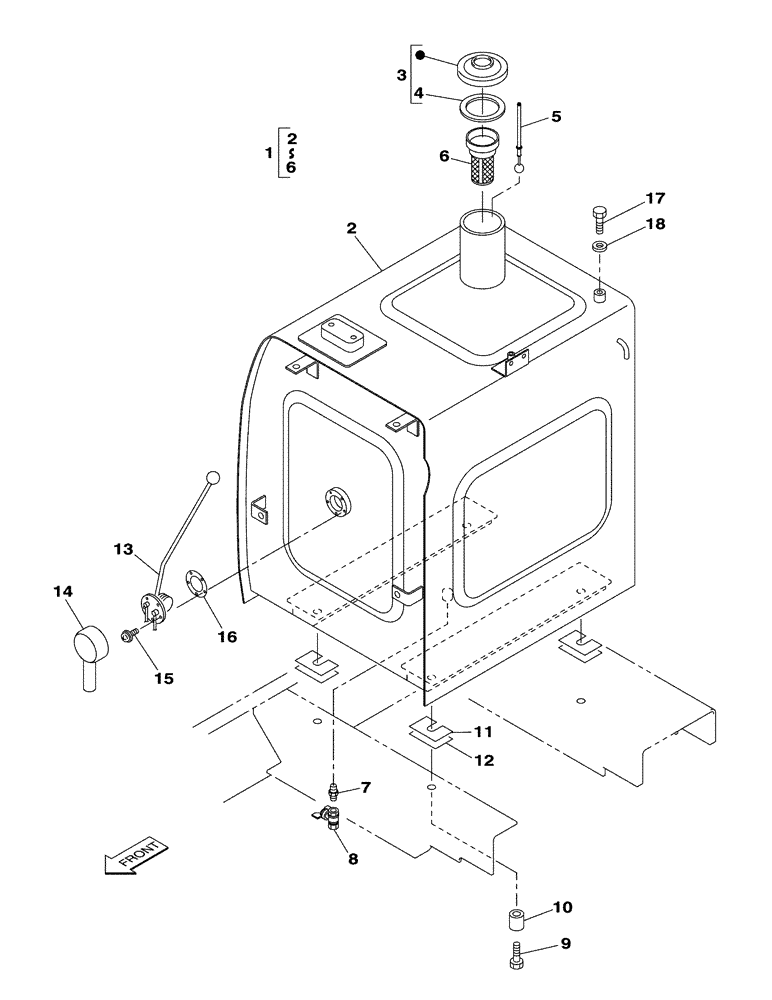

Запчасти Case CX210LR (03-01A) - FUEL TANK (03) - FUEL SYSTEM

1

KRH1479

FUEL TANK

1шт.

Consists Of Ref. Numbers 2 To 6

1шт.

2

NSS

NOT SOLD SEPARAT

Tank, Fuel

1шт.

3

150492A1

LOCKABLE FUEL CAP

1шт.

Consists Of Ref. Number 4

1шт.

4

163804A1

GASKET

1шт.

5

KHH0330

GAUGE

1шт.

6

KHH0500

FILTER

1шт.

Valid with CX210LR, CX210N, CX240, CX240LR Models

1шт.

7

150847A1

HYD CONNECTOR

1шт.

8

158923A1

DRAIN VALVE

1шт.

9

827-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

Hex, M16 x 65, 10.9

4шт.

10

153357A1

SPACER

4шт.

11

150166A1

SHIM

0,80 mm (0,032 in)

1шт.

12

150479A1

SHIM

2,00 mm (0,079 in)

1шт.

13

159610A1

SENSOR

1шт.

14

159698A1

COVER

1шт.

15

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

5шт.

16

152591A1

GASKET,2mm Thk

1шт.

17

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.
