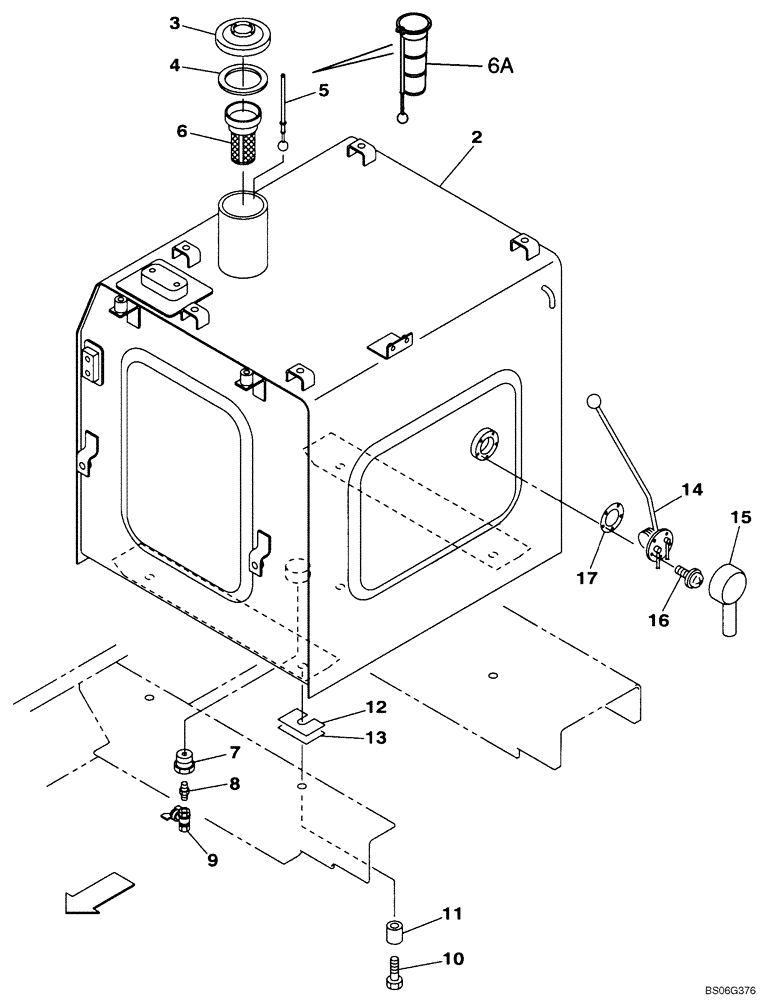

Запчасти Case CX210LR (03-01) - FUEL TANK (03) - FUEL SYSTEM

2

KRH1352

FUEL TANK

Incl. 3 - 6A

1шт.

3

150492A1

LOCKABLE FUEL CAP

Incl. 4

1шт.

4

163804A1

GASKET

1шт.

5

KHH0330

GAUGE

If Used

1шт.

6

150146A1

FILTER

Fuel; No Longer Available, Order KHH0500

1шт.

Valid with CX210LR, CX210N, CX240, CX240LR Models

1шт.

6a

KHH0500

FILTER

Fuel, With Gauge

1шт.

Valid with CX210LR, CX210N, CX240, CX240LR Models

1шт.

7

159188A1

BUSHING

If Used

1шт.

8

150847A1

HYD CONNECTOR

1шт.

9

158923A1

DRAIN VALVE

1шт.

10

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

Replaces 827-16070

4шт.

11

153357A1

SPACER

4шт.

12

150166A1

SHIM

0,80 mm (0,032 in)

1шт.

13

150479A1

SHIM

2,00 mm (0,079 in)

1шт.

14

159610A1

SENSOR

1шт.

15

159698A1

COVER

1шт.

16

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

5шт.

17

152591A1

GASKET,2mm Thk

1шт.
