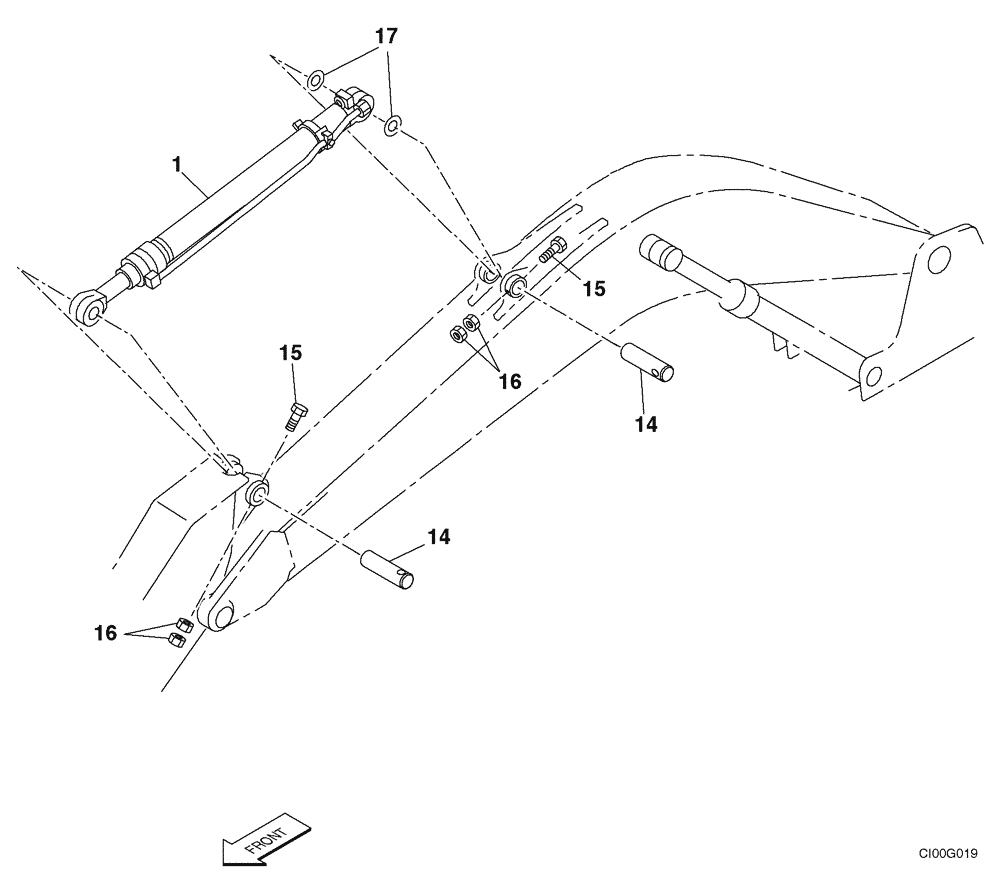

Запчасти Case CX210LR (09-39) - ARM CYLINDER - MOUNTING (09) - CHASSIS

1

KRV3236

HYDRAULIC CYLINDER

Arm; Models Without Load Hold; See Figure 08-48

1шт.

1

KRV3239

HYDRAULIC CYLINDER

Arm; Models With Load Hold; ; See Figure 08-48B

1шт.

14

159738A1

PIN,80mm OD x 273mm L

2шт.

15

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

2шт.

16

829-11420

NUT,M20 x 1.5, Cl 10

4шт.

17

159741A1

SHIM

2шт.
