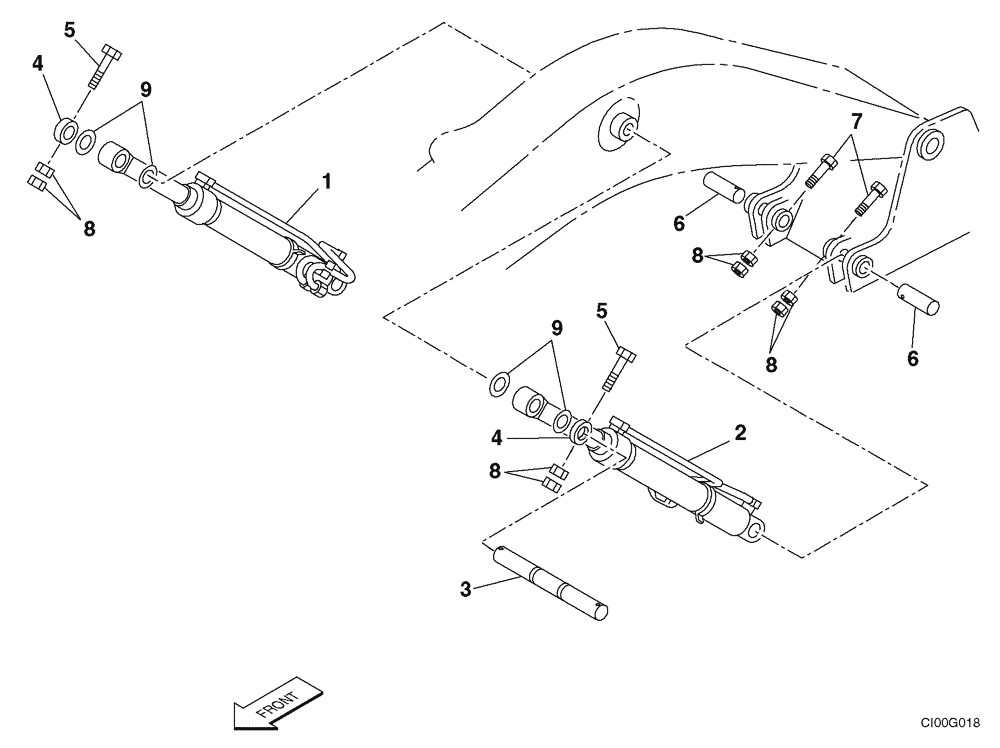

Запчасти Case CX210LR (09-37) - BOOM CYLINDER - MOUNTING (09) - CHASSIS

1

KRV18900

HYDRAULIC CYLINDER

Right Hand; Models Without Load Hold; See Figure 08 -46, Replaces KRV3234

1шт.

1

KRV18920

HYDRAULIC CYLINDER

Right Hand; Models With Load Hold; See Figure 08-47B, Replaces KRV3238

1шт.

2

KRV18910

HYDRAULIC CYLINDER

Left Hand; Models Without Load Hold; See Figure 08 -47, Replaces KRV3235

1шт.

2

KRV18920

HYDRAULIC CYLINDER

Left Hand; Models With Load Hold; See Figure 08-47B, Replaces KRV3238

1шт.

3

169087A1

PIN

Replaces 160443A1

1шт.

4

160451A1

LOCKING RING

2шт.

5

514-1221

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

2шт.

6

168993A1

PIN,80mm OD x 247mm L

Replaces 160445A1

2шт.

7

514-1225

BOLT,Hex, M20 x 1.5 x 140mm, Cl 10.9

2шт.

8

829-11420

NUT,M20 x 1.5, Cl 10

8шт.

9

160453A1

SHIM

1,30 mm (0,051 in)

4шт.
