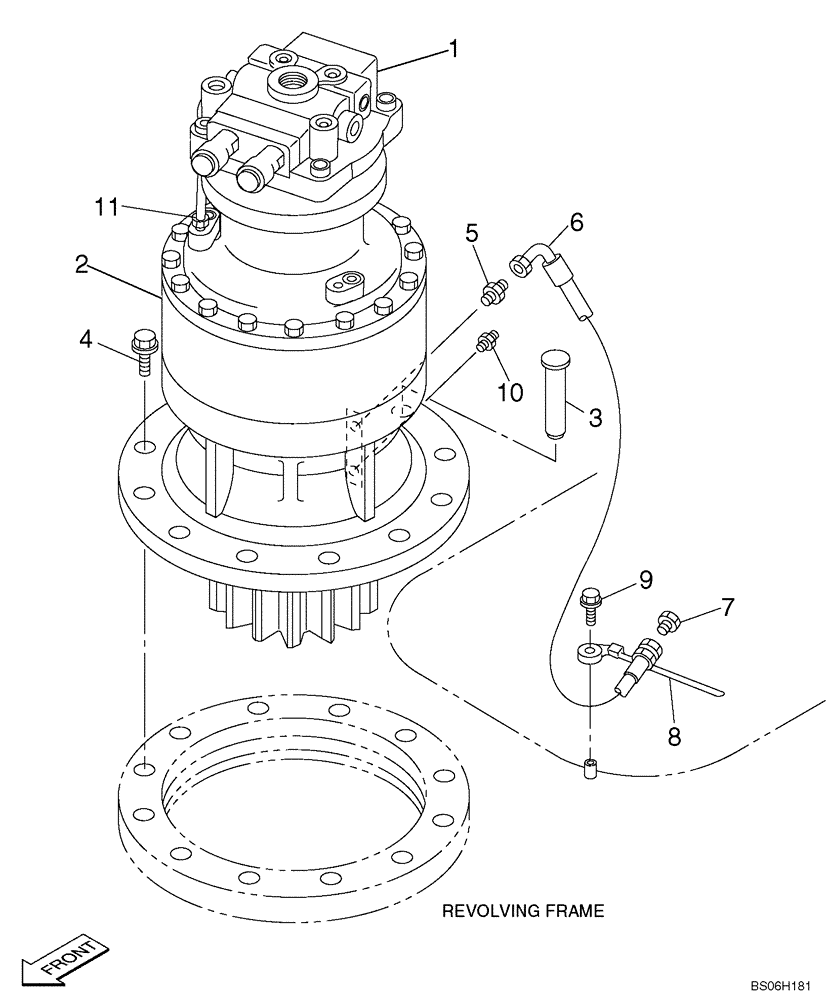

Запчасти Case CX210LR (08-35A) - MOUNTING - SWING MOTOR, PIN DAC0721172 - DAC0721422 (08) - HYDRAULICS

1

KRC0224

Motor, Swing, Not Serviced As An Assembly; See Figure 08-36 For Component Parts

1шт.

2

KRC0209

REDUCER

See Figure 08-37

1шт.

LN00111R

REMAN-REDUCTION UNIT

CX210LR PIN DAC0721172-DAC0721422 Reman for new P/N KRC0209

1шт.

LN00111C

CORE-REDUCTION UNIT

Return Number

1шт.

3

158955A1

HEADED PIN

M20 x 75

1шт.

4

166354A1

BOLT,Sems, M20 x 75mm

11шт.

5

153597A1

ADAPTER

1шт.

6

KHJ1193

HYDRAULIC HOSE,9.52 mm ID x 450.00 mm

1шт.

7

KHP0501

PLUG

1шт.

8

KHR2583

CLAMP

1шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

10

153630A1

LUBE NIPPLE

1шт.

11

KHJ2277

BUSHING

1шт.
