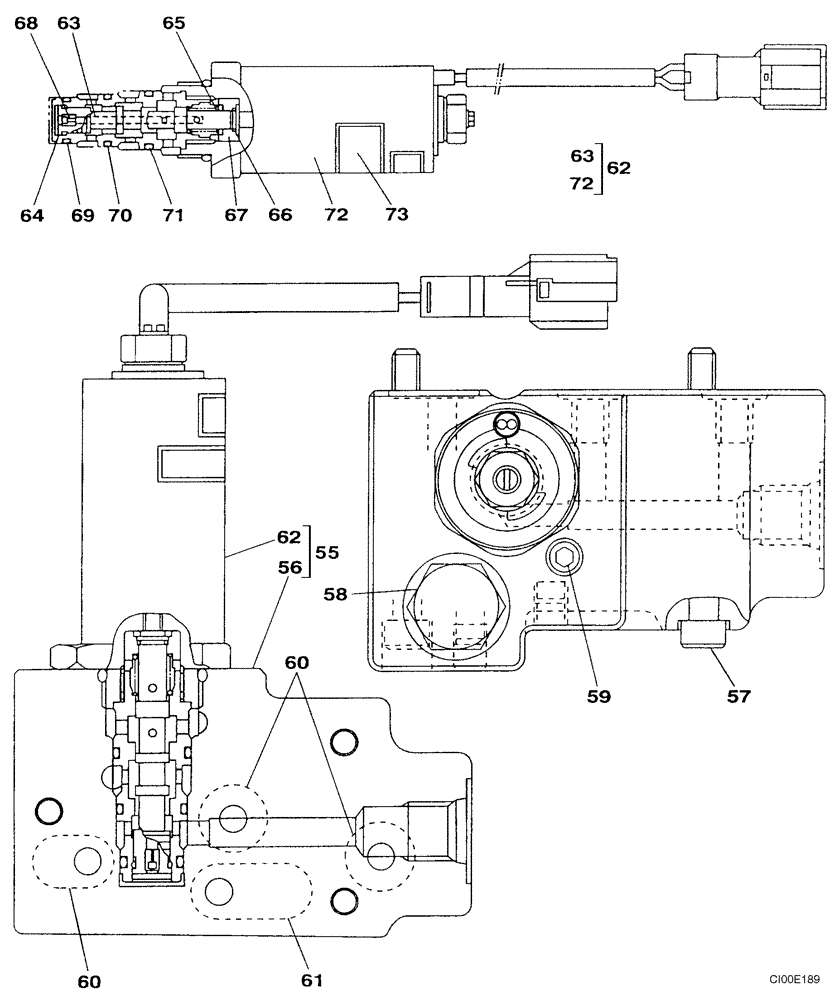

Запчасти Case CX210LR (08-33) - PUMP ASSY, HYDRAULIC - SOLENOID VALVE (Aug 12 2010 11:56AM) (08) - HYDRAULICS

KRJ6199

PUMP, HYDRAULIC

Includes All Parts On Figures 08-30 - 08-34

1шт.

87341979

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - N.A. Only

1шт.

87341980

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

55

LW00310

PILOT VALVE

Incl. 56 - 73

1шт.

56

NSS

NOT SOLD SEPARAT

Body

1шт.

57

861-6060

HEX SOC SCREW,M6 x 60mm, Cl 12.9

3шт.

58

155496A1

PLUG

1шт.

59

LK00003

PLUG

3шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

61

154483A1

O-RING

1шт.

62

LJ00684

SOLENOID VALVE

Solenoid; Incl. 63 - 73

1шт.

63

NSS

NOT SOLD SEPARAT

Spool

1шт.

64

NSS

NOT SOLD SEPARAT

Tappet

1шт.

65

NSS

NOT SOLD SEPARAT

Seal

1шт.

66

NSS

NOT SOLD SEPARAT

Seal

1шт.

67

NSS

NOT SOLD SEPARAT

Seat

1шт.

68

NSS

NOT SOLD SEPARAT

End

1шт.

69

155203A1

O-RING

1шт.

70

155204A1

O-RING

1шт.

71

160652A1

O-RING

1шт.

72

LL00055

SOLENOID

1шт.

73

NSS

NOT SOLD SEPARAT

Plate, Registration

1шт.
