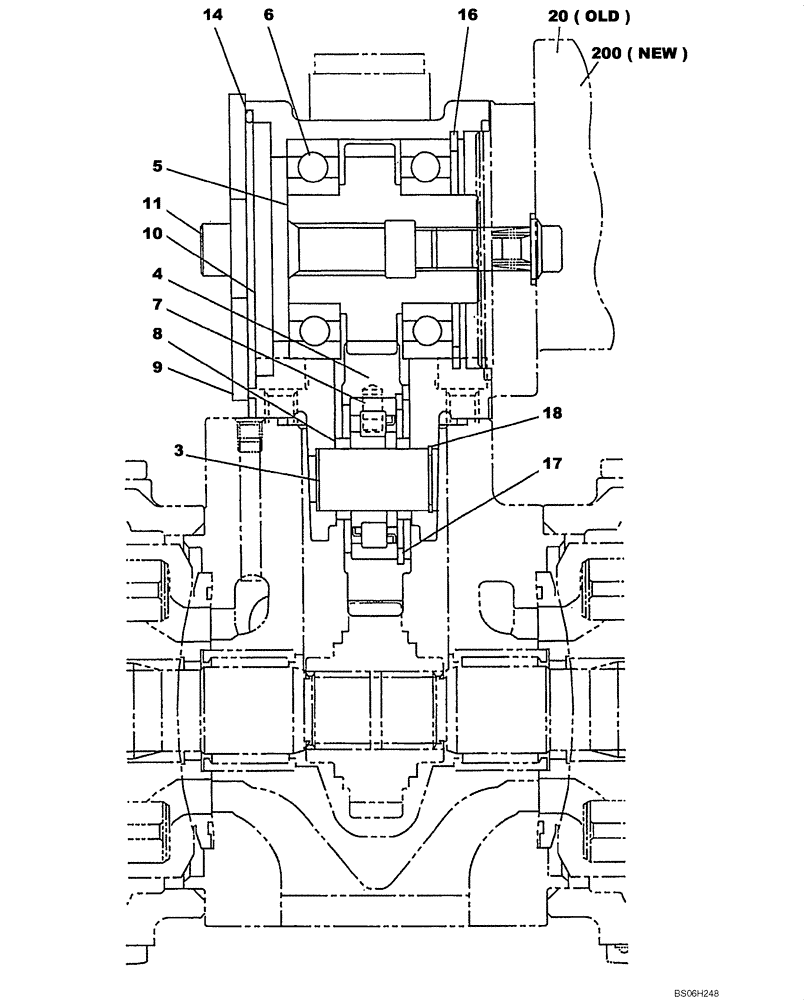

Запчасти Case CX210LR (08-31) - PUMP ASSY, HYDRAULIC - DRIVE (Aug 12 2010 11:56AM) (08) - HYDRAULICS

KRJ6199

PUMP, HYDRAULIC

Includes All Parts On Figures 08-30 - 08-34

1шт.

87341979

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - N.A. Only

1шт.

87341980

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

2

LC00159

HYDRAULIC PUMP

Incl. 3 - 200; Also Incl. Parts on Figure 08-32

1шт.

3

NSS

NOT SOLD SEPARAT

Pin

1шт.

4

NSS

NOT SOLD SEPARAT

Gear

1шт.

5

NSS

NOT SOLD SEPARAT

Gear

1шт.

6

NSS

NOT SOLD SEPARAT

Bearing, Ball

2шт.

7

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer

1шт.

9

NSS

NOT SOLD SEPARAT

Flange

1шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

2шт.

14

154697A1

O-RING

1шт.

16

800-2172

SNAP RING

1шт.

17

800-2152

SNAP RING,M52, Int

1шт.

18

800-2120

SNAP RING,M20, Int

1шт.

20

LJ00683

PUMP, HYDRAULIC

Gear; See Figure 08-32; P.I.N. DAC0721101 - DAC0721714

1шт.

200

LJ01269

HYDRAULIC PUMP

Gear; See Figure 08-32; P.I.N. DAC0721715

1шт.
