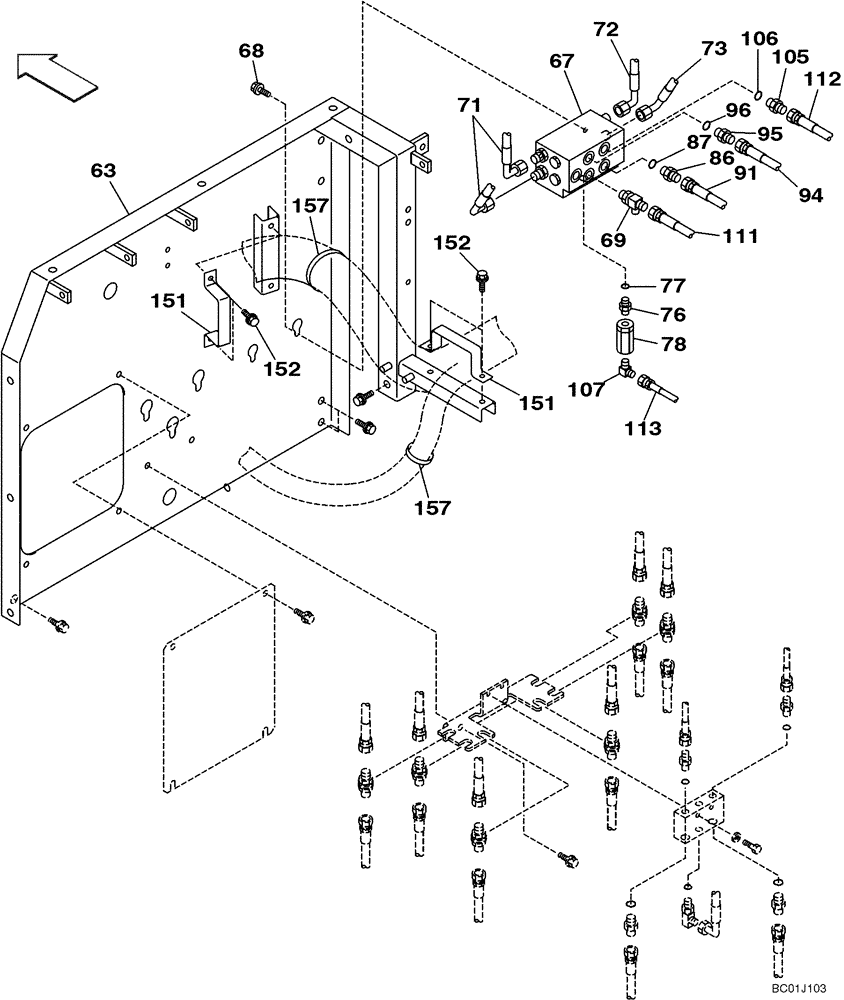

Запчасти Case CX210 (08-19) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

MODELS WITHOUT LOAD HOLD

1шт.

63

KRJ7117

SIDE PANEL

Replaces KRJ6275

1шт.

67

KRJ6501

VALVE, CUSHION

See Figure 08-43

1шт.

68

166052A1

BOLT

2шт.

69

163422A1

TEE

1шт.

71

162835A1

HOSE ASSY.

2шт.

72

KRJ3932

HOSE

1шт.

73

KRJ3569

HOSE

1шт.

76

152899A1

HYD CONNECTOR

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

151552A1

FILTER

1шт.

86

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 87

1шт.

87

154475A1

O-RING

1шт.

91

162565A1

HOSE ASSY.

1000 mm (39-3/8 in); See Figure 08-22

1шт.

94

159224A1

HOSE ASSY.

900 mm (35-1/2 in); See Figure 08-22

1шт.

95

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 96

1шт.

96

154475A1

O-RING

1шт.

105

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 106

1шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

107

153596A1

ADAPTER

1шт.

111

161492A1

HOSE

See Figure 08-22

1шт.

112

KHJ1606

HYDRAULIC HOSE

See Figure 08-22

1шт.

113

162648A1

HOSE

See Figure 08-22

1шт.

151

159036A1

CLAMP

2шт.

152

166350A1

BOLT

4шт.

157

150071A1

MOUNTING CLIP

2шт.
