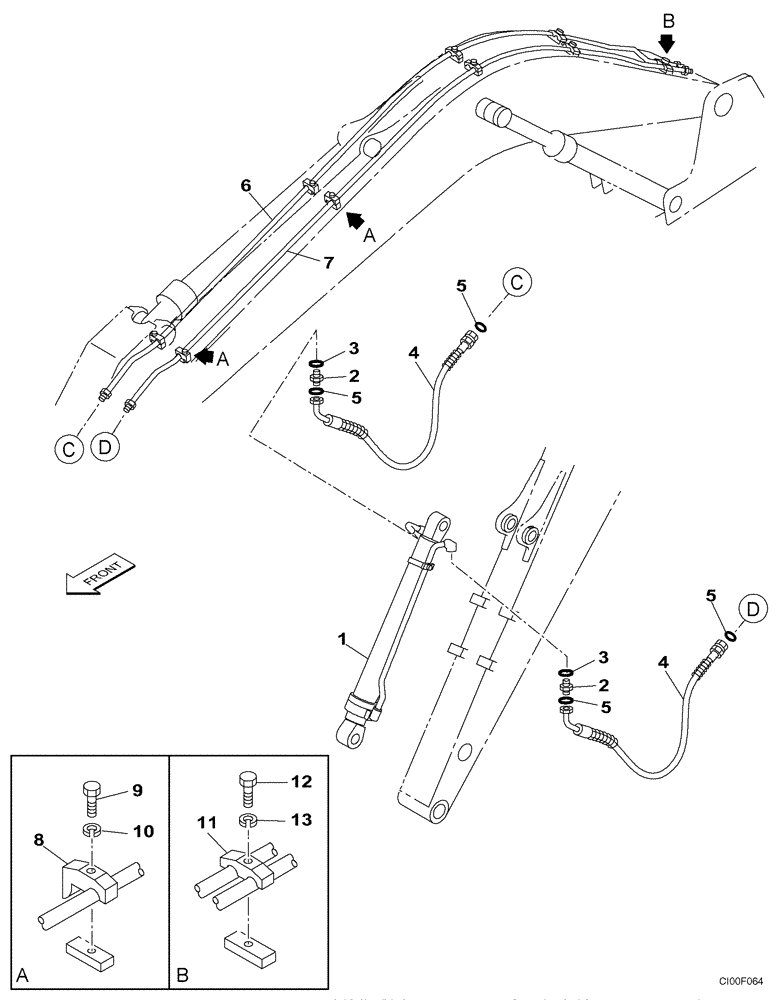

Запчасти Case CX210 (08-13) - HYDRAULICS - BUCKET, 2,40 METER (7FT 10 IN) ARM (08) - HYDRAULICS

1

KRV3237

BUCKET CYLINDER

Bucket; See Figure 08-49

1шт.

1

KRV3237R

REMAN-HYD CYLINDER

CX210 CASE STANDARD CRAWLER EXCAVATOR, CX210N CASE NARROW EXCAVATOR ~DAC0721850 & ASN DAC211851, Both (NORTH AMERICA), Bucket, 2,40 METER (7FT 10 IN) ARM

1шт.

1

KRV3237C

CORE-HYD CYLINDER

Return Number

1шт.

2

KHJ1348

ADAPTER

Incl. 3

2шт.

3

154503A1

O-RING

1шт.

4

KRV2779

HYDRAULIC HOSE,19mm ID x 1300mm L

2шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

6

KRV2377

HYD TUBE,2348.8, 3236.1 mm L

1шт.

7

KRV2378

HYD TUBE,3238.1, 2348.9 mm L

1шт.

8

151486A1

CLAMP BRACKET

2шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

10

150811A1

WASHER

2шт.

11

159742A1

COLLAR

1шт.

12

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

13

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

1шт.
