Запчасти Case CX210 (08-12A) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (Apr 4 2012 3:46PM) (08) - HYDRAULICS

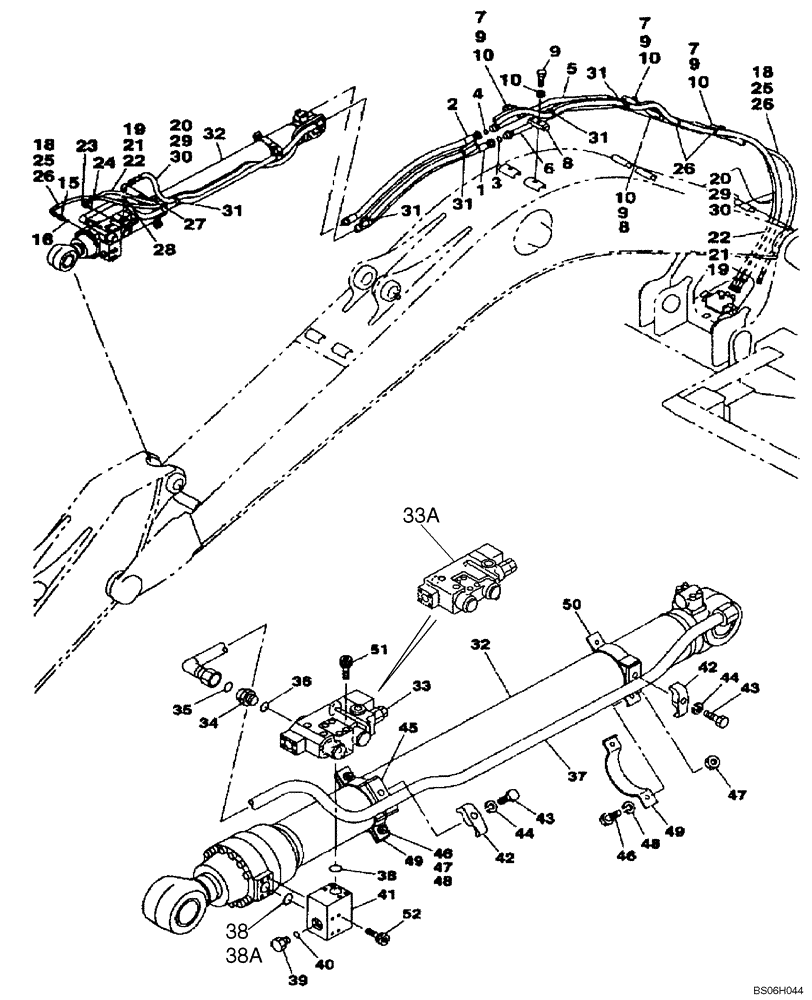

Схема запчастей Case CX210 - (08-12A) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (Apr 4 2012 3:46PM) (08) - HYDRAULICS
9
43
27
33a
25
8
9
30
10
10
34
44
37
26
24
7
7
10
52
9
39
31
33
6
51
26
19
30
49
47
29
48
45
3
31
46
7
47
1
22
45
38
23
15
31
29
44
10
16
50
21
38a
26
25
20
9
41
40
32
5
19
49
4
42
46
18
8
32
21
22
36
31
38
18
10
35
9
42
20
31
43
28
2

Артикул

Название

Примечание

Количество

1

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

1шт.

2

KRV2406

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

5

KRV2374

TUBE,26 mm ID x 34 mm OD

1шт.

6

KRV3059

TUBE,20.8 mm ID x 27.2 mm OD

1шт.

7

151489A1

CLAMP

3шт.

8

159742A1

COLLAR

2шт.

9

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

5шт.

10

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

5шт.

15

159226A1

ADAPTER

Incl. 16

1шт.

16

154475A1

O-RING

1шт.

18

KRV3034

HYDRAULIC HOSE,9.50 mm ID x 6700.00 mm

1шт.

19

KRV3035

HYDRAULIC HOSE,9.50 mm ID x 6400.00 mm

1шт.

20

KRV3036

HYDRAULIC HOSE,12.70 mm ID x 6400.00 mm

1шт.

21

169298A1

PLASTIC-RUBBER TUBE

1шт.

22

150067A1

MOUNTING CLIP

4шт.

23

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 24

1шт.

24

154475A1

O-RING

1шт.

25

168874A1

PLASTIC-RUBBER TUBE

1шт.

26

150067A1

MOUNTING CLIP

4шт.

27

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 28

1шт.

28

154487A1

O-RING

1шт.

29

169302A1

PLASTIC-RUBBER TUBE

1шт.

30

150067A1

MOUNTING CLIP

14шт.

31

150496A1

MOUNTING CLIP

5шт.

32

KRV3239

HYDRAULIC CYLINDER

Arm; See Figure 08-48B

1шт.

33

KRV2801

VALVE

See Figure 08-48A; P.I.N. DAC07221101 - DAC0721499

1шт.

KBV1858

VALVE

See Figure 08-48C; P.I.N. DAC0721500 -

1шт.

34

KHJ1349

ADAPTER

Incl. 35

1шт.

35

154523A1

O-RING

1шт.

36

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

37

KRV3121

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

38

KHV0392

O-RING

P.I.N. DAC07221101 - DAC0721499

2шт.

38

155211A1

O-RING

P.I.N. DAC0721500 -

1шт.

38a

154528A1

O-RING

P.I.N. DAC0721500 -

1шт.

39

159085A1

PLUG

Incl. 40

1шт.

40

154487A1

O-RING

1шт.

41

KRV2985

MANIFOLD VALVE

P.I.N. DAC07221101 - DAC0721499

1шт.

41

KRV3428

MANIFOLD

P.I.N. DAC0721500 -

1шт.

42

151486A1

CLAMP BRACKET

2шт.

43

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

44

892-11012

LOCK WASHER,M12

2шт.

45

KRV2986

CLAMP

1шт.

46

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

47

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

48

892-11010

LOCK WASHER,M10

4шт.

49

KRV2861

CLAMP

2шт.

50

KRV2862

CLAMP

1шт.

51

862-10090

HEX SOC SCREW,M10 x 90mm, Cl 12.9

P.I.N. DAC07221101 - DAC0721499

4шт.

51

862-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

P.I.N. DAC0721500 -

4шт.

52

862-10100

HEX SOC SCREW,M10 x 100mm, Cl 12.9

4шт.
