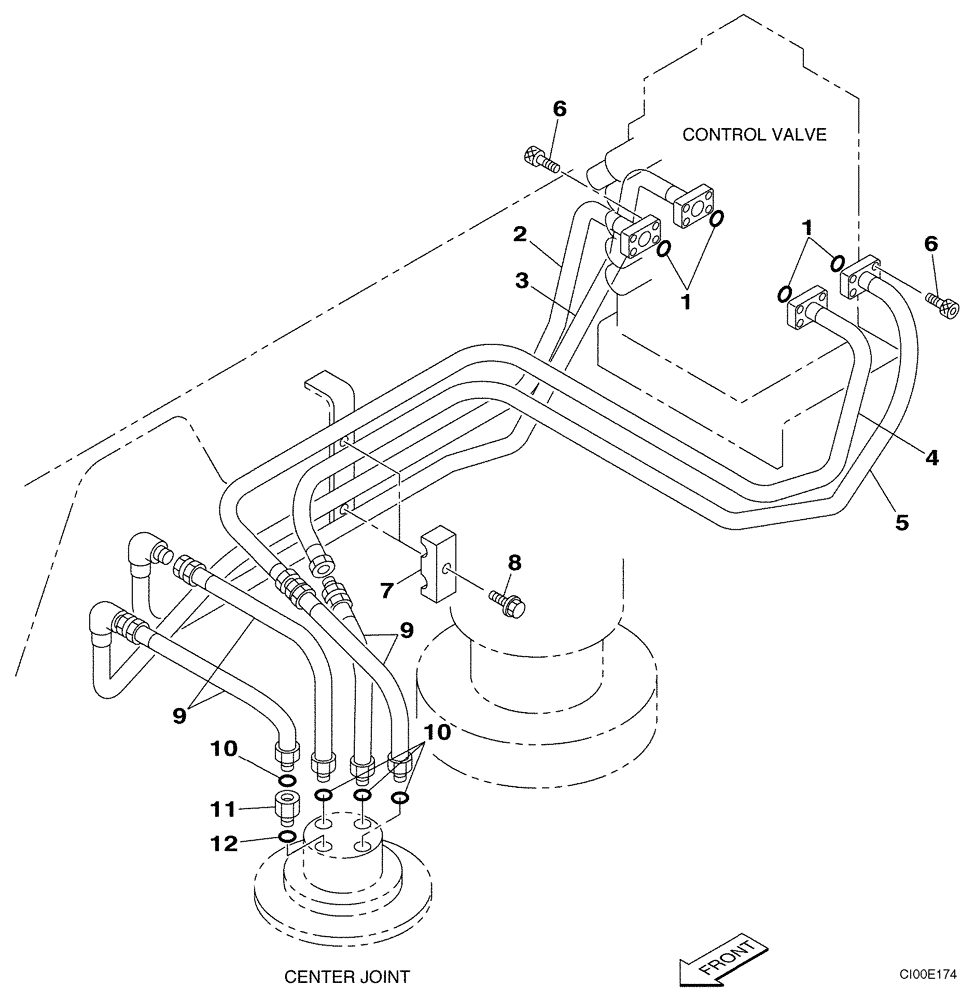

Запчасти Case CX210 (06-06) - HYDRAULICS - TRAVEL (06) - POWER TRAIN

1

154528A1

O-RING

4шт.

2

KRJ5771

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

3

KRJ5772

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

4

KRJ5773

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

5

KRJ5774

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

7

152085A1

COLLAR

2шт.

8

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

2шт.

9

159197A1

HYDRAULIC HOSE,19mm ID x 580mm L

580 mm (22-13/16 in); Incl. 10

4шт.

10

154503A1

O-RING

1шт.

11

159198A1

ADAPTER

Incl. 12

1шт.

12

154503A1

O-RING

1шт.
