(06-05) - HYDRAULICS - TRACK DRIVE (Feb 4 2011 3:16PM)

Запчасти Case CX210 (06-05) - HYDRAULICS - TRACK DRIVE (Feb 4 2011 3:16PM) (06) - POWER TRAIN

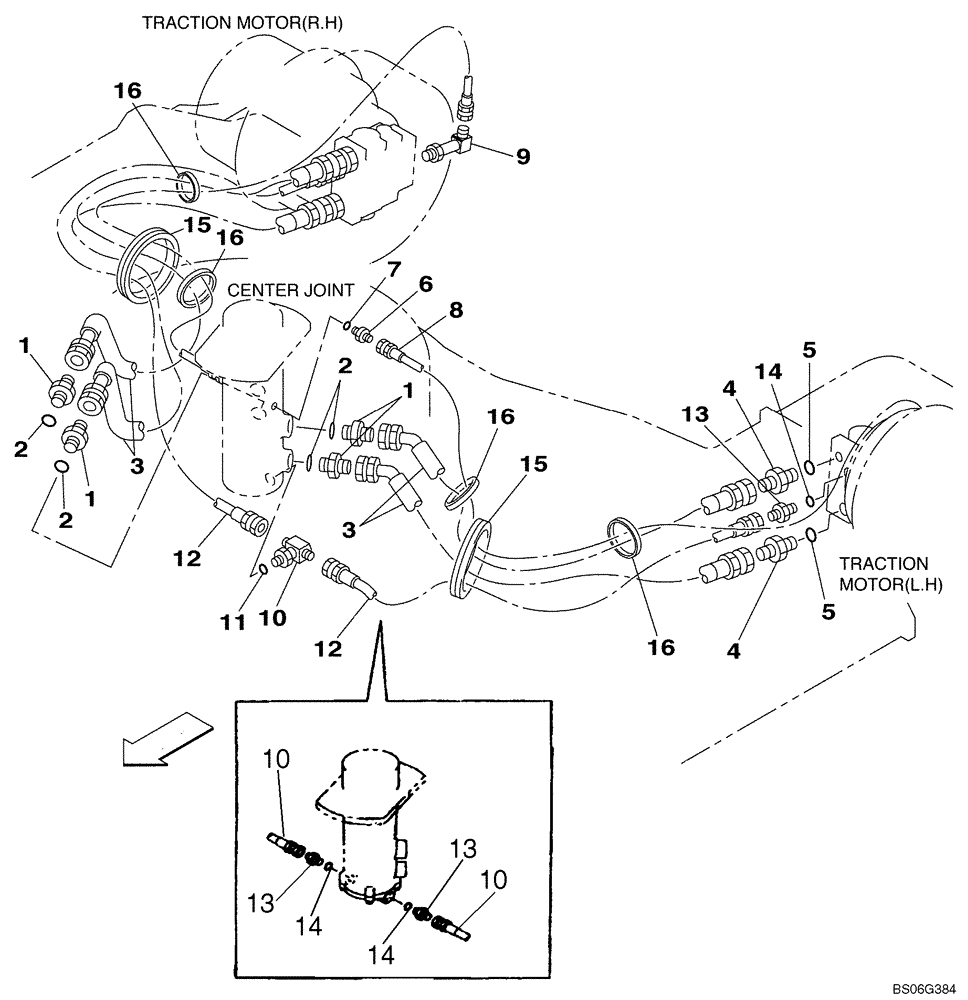

Схема запчастей Case CX210 - (06-05) - HYDRAULICS - TRACK DRIVE (Feb 4 2011 3:16PM) (06) - POWER TRAIN
1
2
10
7
9
12
14
10
10
14
16
5
3
15
2
13
15
1
11
3
12
5
14
16
13
1
13
4
16
2
6
16
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 2

4шт.

2

154503A1

O-RING

1шт.

3

KRA1536

HYDRAULIC HOSE,19mm ID x 2120mm L

4шт.

4

169040A1

ADAPTER

Incl. 5

4шт.

5

154523A1

O-RING

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

152778A1

HOSE ASSY.

2700 mm (106-3/8 in)

2шт.

9

KHJ1178

ELBOW

2шт.

10

169309A1

TEE

Incl. 11; P.I.N. DAC0721787 - DAC0825130

1шт.

11

154487A1

O-RING

1шт.

12

152435A1

HYDRAULIC HOSE,12.70 mm ID x 2150.00 mm

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 14; 4 Used P.I.N. DAC0825131 -

2-4шт.

14

154487A1

O-RING

1шт.

15

160414A1

RUBBER BLOCK

2шт.

16

150071A1

MOUNTING CLIP

4шт.
