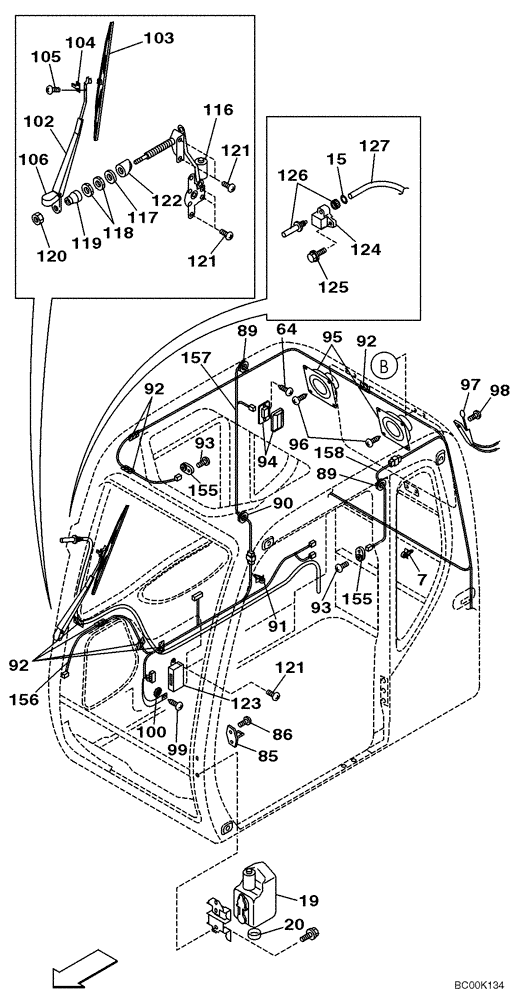

Запчасти Case CX210 (04-08) - CAB ELECTRICAL - WIPER, WINDSHIELD (04) - ELECTRICAL SYSTEMS

7

161381A1

COLLAR

4шт.

15

161363A1

GROMMET

1шт.

19

161374A1

RESERVOIR ASSY.

Incl. 20

1шт.

20

KHN2506

PLUG

1шт.

64

KHN2687

SCREW,Spcl

M5 x 14

4шт.

85

KHN2701

CATCH PLATE

1шт.

86

KHN2702

SCREW,Spcl

2шт.

89

KHN2709

GROMMET

2шт.

90

KHN2710

GROMMET

1шт.

91

KHN2711

CABLE CLIP

1шт.

92

KHN2712

FASTENER

7шт.

93

KHN2713

SCREW,Spcl

M5 x 16

2шт.

94

KHN2714

COURTESY LIGHT

DOME LIGHT

1шт.

95

KHN2715

SPEAKER

2шт.

96

KHN2716

SCREW,Spcl

M4 x 12

8шт.

97

KHN2717

ANTENNA

1шт.

98

KHN2718

SCREW,Spcl

M3,5 x 16

1шт.

99

KHN2719

SCREW,Spcl

M6 x 12

1шт.

100

KHN2720

WASHER

1шт.

102

KHN2730

WIPER ARM

1шт.

103

KHN2731

WIPER BLADE

1шт.

104

KHN2732

ADAPTER

1шт.

105

KHN2733

SCREW,Spcl

2шт.

106

KHN2734

CAP ASSY.

1шт.

KHN2735

WIPER MOTOR

MOTOR, WIPER Incl. 116 - 120

1шт.

116

KHN2736

WIPER MOTOR

MOTOR, WIPER

1шт.

117

KHN2737

WASHER

1шт.

118

KHN2738

SPECIAL NUT

2шт.

119

KHN2739

CAP

1шт.

120

KHN2740

SPECIAL NUT

1шт.

121

KHN2741

SCREW,Spcl

M6 x 16

8шт.

122

KHN2742

SPACER

1шт.

123

KHN2743

ECU

1шт.

124

KHN2744

SUPPORT

1шт.

125

KHN2745

BOLT,Spcl

M6 x 1 x 50

1шт.

126

KHN2746

NOZZLE

1шт.

127

KHN2747

HOSE

1шт.

155

KHR2950

LIMIT SWITCH

2шт.

156

KHR3188

HARNESS

1шт.

157

KHR3190

HARNESS

1шт.

158

KHR3191

HARNESS

1шт.
