Запчасти Case CX210 (04-04) - HARNESS - ELECTRONIC IGNITION CONTROL MODULE (04) - ELECTRICAL SYSTEMS

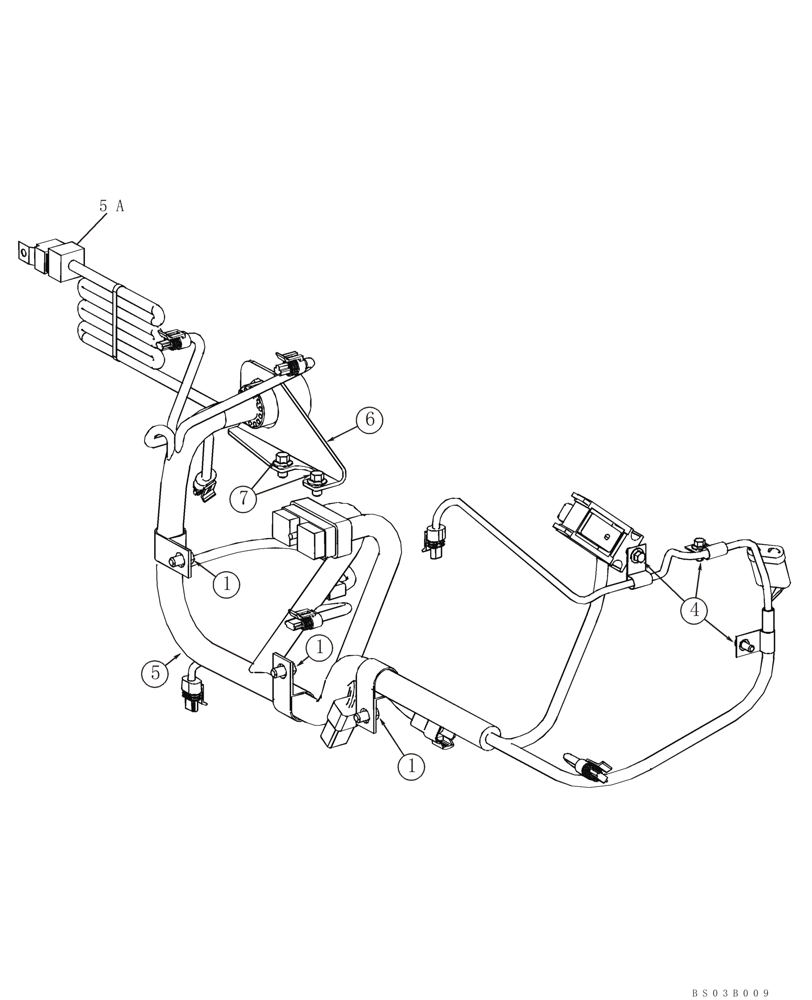

Схема запчастей Case CX210 - (04-04) - HARNESS - ELECTRONIC IGNITION CONTROL MODULE (04) - ELECTRICAL SYSTEMS
5a
bs03b009
1
1
4
5
1
7
6

Артикул

Название

Примечание

Количество

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

1

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

5шт.

2

459329C1

NUT

Not Illustrated

1шт.

3

459330C1

LOCK WASHER

Not Illustrated

1шт.

4

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12

3шт.

5

86991433

HARNESS

Electronic Control Module; Replaces J937165; Incl.5A

1шт.

5a

441777A1

RELAY

Fuel Shutoff; 24 volt

1шт.

6

J943735

BRACKET

Wiring Retainer

1шт.

7

J921816

SPECIAL BOLT

2шт.

8

J822934

GREASE

Not Illustrated

1шт.

Выбрано товаров: 10
