Запчасти Case CX210 (04-03) - ENGINE, ACCESSORIES (04) - ELECTRICAL SYSTEMS

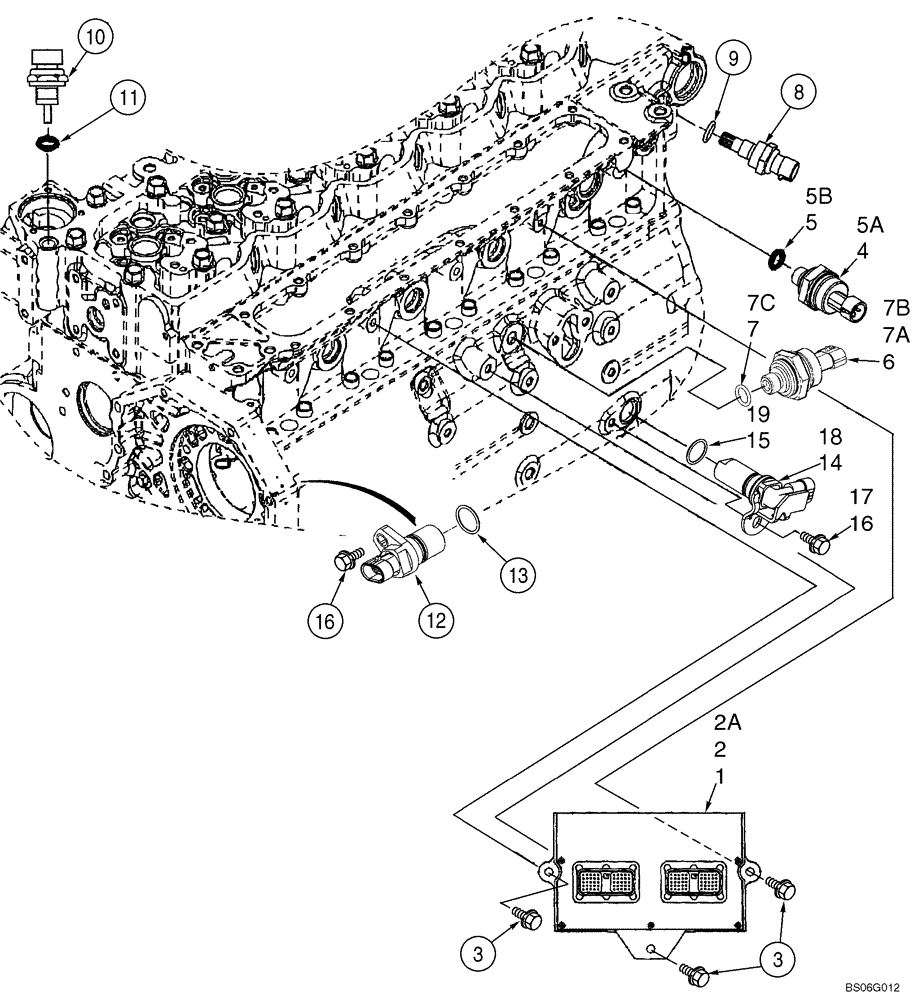

Схема запчастей Case CX210 - (04-03) - ENGINE, ACCESSORIES (04) - ELECTRICAL SYSTEMS
7c
3
3
5a
4
16
14
9
15
17
2
10
6
7a
18
2a
5
13
5b
1
7
7b
19
16
12
11
8

Артикул

Название

Примечание

Количество

0

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

JR944124

REMAN-ELECT MONITOR

REMAN-MONITOR N.A. Only, No Longer Available

1шт.

JC944124

CORE-MONITOR

1шт.

1

J944124

CONTROL

Electronic Control, Incl. 2; No Longer Available, Order 87404589

1шт.

2

403797A1

CONTROL

Calibrated

1шт.

2a

87404589

MODULE

Calibrated Engine

1шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

4

J348747

SENSOR

Manifold Air Pressure; Also Known As Turbo Boost Pressure Switch, Incl. 5; No Longer Available, For Service Order Ref 5A, 87559412 Sensor

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

5a

87559412

SENSOR

Manifold Air Pressure, Incl. 5B

1шт.

5b

87536785

O-RING,0.087" Thk x 0.445" ID

1шт.

6

NSS

NOT SOLD SEPARAT

Oil Pressure, Incl. 7, Replaces J408428; No Longer Used, Order Ref 7A, J4088228

1шт.

7

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

7a

J4088228

SENSOR

Oil Pressure, Incl. 7; No Longer Available, Order Ref 7B, 87566186

1шт.

7b

87566186

SENSOR

Oil Pressure, Incl. 7C

1шт.

7c

87385019

O-RING,11.3mm ID x 2.2mm Width

1шт.

8

J408345

SENSOR

Manifold Air Temperature, Incl. 9

1шт.

9

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

10

J865346

SENSOR

Coolant Temperature, Incl. 11

1шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

87382544

SENSOR

Position And Speed, Incl. 13, Replaces J4002064, 87405627

1шт.

13

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

Replaces J330478

1шт.

14

J4002066

SENSOR

Position, Incl. 15; No Longer Available, For Service Order Ref 18, 87375189 Sensor

1шт.

15

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

16

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1-2шт.

17

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

18

87375189

SENSOR

Position, Incl. 19

1шт.

19

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.
