Запчасти Case CX210 (04-02) - ALTERNATOR ASSY (04) - ELECTRICAL SYSTEMS

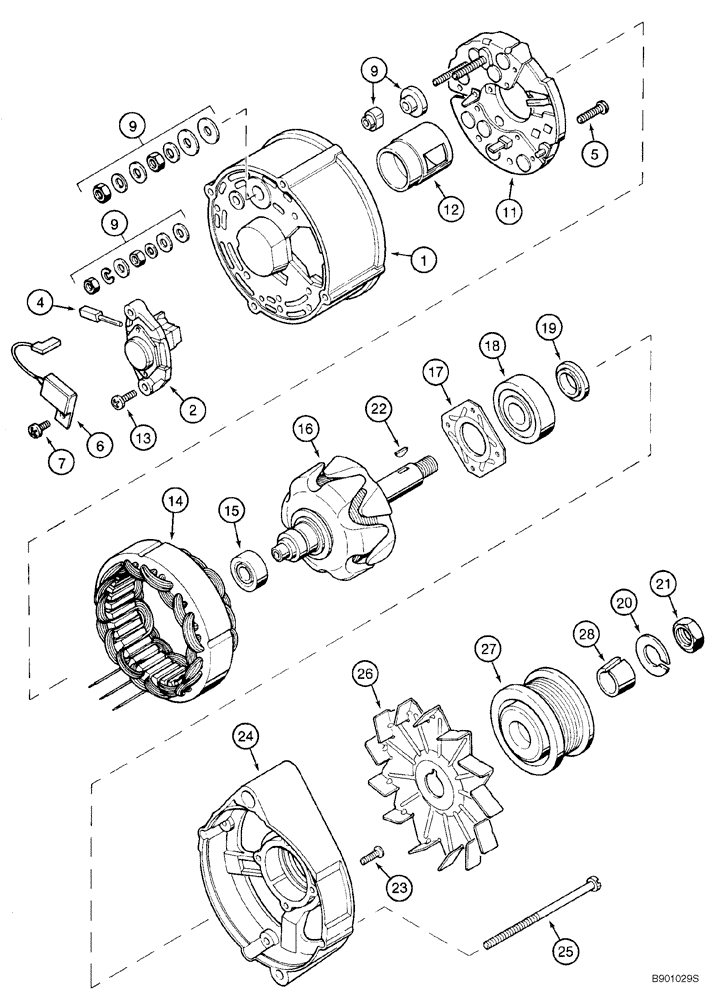

Схема запчастей Case CX210 - (04-02) - ALTERNATOR ASSY (04) - ELECTRICAL SYSTEMS
7
14
19
28
15
27
2
1
26
13
24
18
12
22
9
11
21
20
16
5
23
4
6
17
9
9
25

Артикул

Название

Примечание

Количество

A187916

ALTERNATOR,24V, 45A

Incl. 1 - 25

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

45A 24V

1шт.

AC187916

CORE-ALTERNATOR

Return Number

1шт.

1

A187996

HOUSING

1шт.

2

A187998

REGULATOR

Incl. 4

1шт.

4

A187999

BRUSH, COMMUTATOR

BRUSH

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

2шт.

6

3079134R1

CAPACITOR

1шт.

7

1964969C1

SCREW

1шт.

9

A187904

MULTIPOLE CONNECTOR

Hardware

1шт.

11

A187997

RECTIFIER

1шт.

12

A187899

INNER SHIELD

1шт.

13

A187504

SCREW

3шт.

14

A188000

STATOR

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

1шт.

16

A187502

ROTOR ASSY.

1шт.

17

A187901

FIXING PLATE

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

1шт.

3078897R1

SET OF PARTS

Incl. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

NSS

NOT SOLD SEPARAT

Key; Not Used In This Application

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

4шт.

24

A191103

COVER

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

26

221425R1

FAN

Not Included In Assembly, Purchase Separately

1шт.

27

J908560

PULLEY

Not Included In Assembly, Purchase Separately; Ref 28 Retainer Not Required With Replacement Pulley 84538542

1шт.

28

J908563

RETAINER

Not Included In Assembly, Purchase Separately; Not Used With Replacement Pulley 84538542

1шт.

Выбрано товаров: 30
