Запчасти Case CX210 (02-21) - GASKET KIT, VALVE GRIND (02) - ENGINE

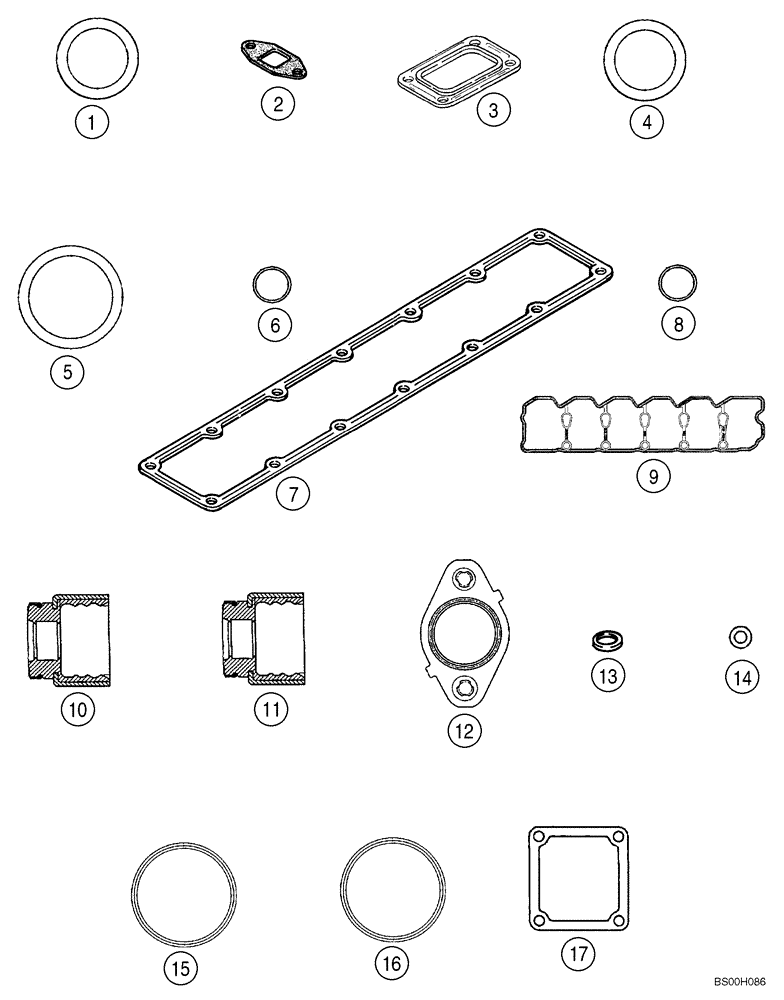

Схема запчастей Case CX210 - (02-21) - GASKET KIT, VALVE GRIND (02) - ENGINE
4
12
10
9
17
3
2
11
5
6
15
14
16
1
8
13
7

Артикул

Название

Примечание

Количество

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

87417071

GASKET KIT

Valve Grind; Replaces A77977

1шт.

1

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Incl. 1 - 17; Not Used In This Application

2шт.

2

J937706

GASKET,0.79mm Thk

See Figure 02-10, REF 11

1шт.

3

J919369

GASKET,0.5mm Thk

See Figure 02-10, REF 2

1шт.

4

J882589

SEAL,1.78mm Thk x 10.82mm ID

12 mm ID; Not Used In This Application

6шт.

5

J883284

O-RING,0.07" Thk x 2.364" ID, -36

See Figure 02-10, REF 19

1шт.

6

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk); See Figure 02-10, Ref 8

2шт.

7

J938152

MANIFOLD GASKET

See Figure 02-09, REF 7

1шт.

8

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

See Figure 02-10, Ref. 16

1шт.

9

J935878

GASKET,10.34mm Thk

See Figure 02-14, REF 3

1шт.

10

87417124

SEAL

SEAL, See Figure 02 -15, REF 10, Replaces J942989

12шт.

11

87417125

SEAL

SEAL, See Figure 02-15, REF 11, Replaces J945438

12шт.

12

86991870

MANIFOLD GASKET

See Figure 02-09, REF 5; Replaces J946275

6шт.

13

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

See Figure 03-08, REF 3; Replaces J906659

6шт.

14

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

See Figure 03-08, Ref. 24

6шт.

15

J942454

SEALING RING

See Figure 02-14, REF 13

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-08, REF 18

2шт.

17

87445995

GASKET

See Figure 02-09, REF 12; Replaces J938158

2шт.

Выбрано товаров: 19
