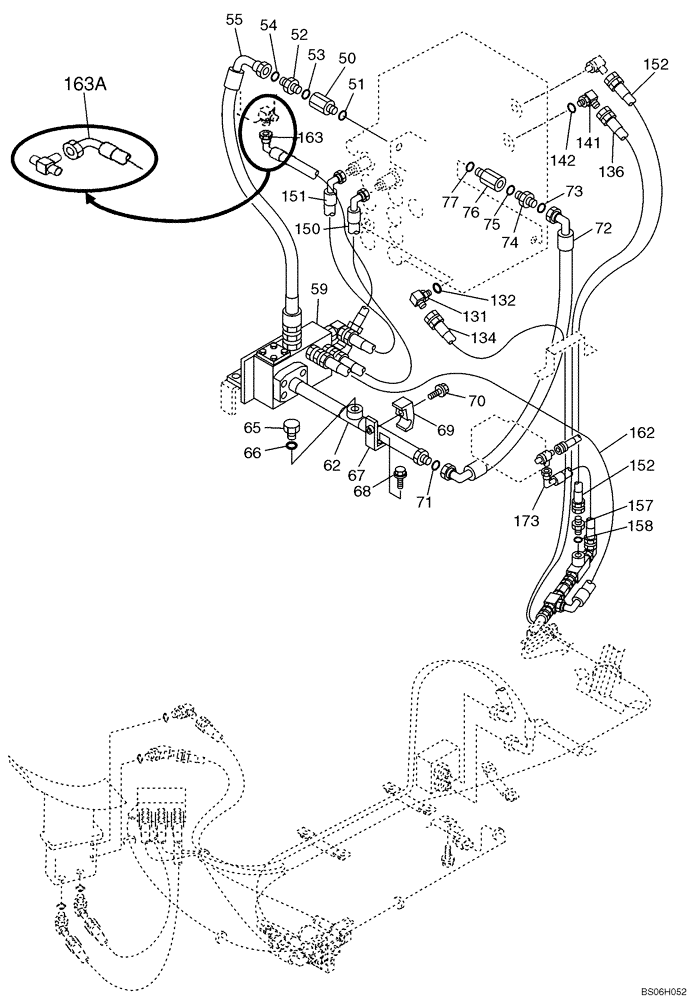

Запчасти Case CX210 (08-54) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

50

152012A1

ELEC CONNECTOR

Incl. 51

1шт.

51

154503A1

O-RING

1шт.

52

KHJ1348

ADAPTER

Incl. 53

1шт.

53

154503A1

O-RING

1шт.

54

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

55

KRJ5936

HYDRAULIC HOSE,19.00 mm ID x 560.00 mm

1шт.

59

KHJ1340

VALVE

Holding; See Figure(s) 08-57, 08-68

1шт.

62

KRJ5940

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

65

152924A1

PLUG

Incl. 66

1шт.

66

154503A1

O-RING

1шт.

67

KRJ5939

BRACKET

1шт.

68

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

69

151486A1

CLAMP BRACKET

1шт.

70

627-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

71

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

72

KRJ5937

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

1шт.

73

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

74

KHJ1348

ADAPTER

Incl. 75

1шт.

75

154503A1

O-RING

1шт.

76

159198A1

ADAPTER

Incl. 77

1шт.

77

154503A1

O-RING

1шт.

131

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 132

1шт.

132

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

134

151904A1

HOSE,6.3mm ID x 3100mm L

1шт.

136

165397A1

HYDRAULIC HOSE

1шт.

141

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 142

1шт.

142

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

150

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

151

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

152

164728A1

HYDRAULIC HOSE,6.30 mm ID x 1150.00 mm

1шт.

157

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 158

1шт.

158

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

162

164791A1

HOSE ASSY.

1шт.

163

162563A1

HOSE ASSY.

No Longer Used, For Service Order Ref 163A

1шт.

163a

159235A1

HYDRAULIC HOSE

1шт.

173

167353A1

HOSE,400.00 mm

1шт.
