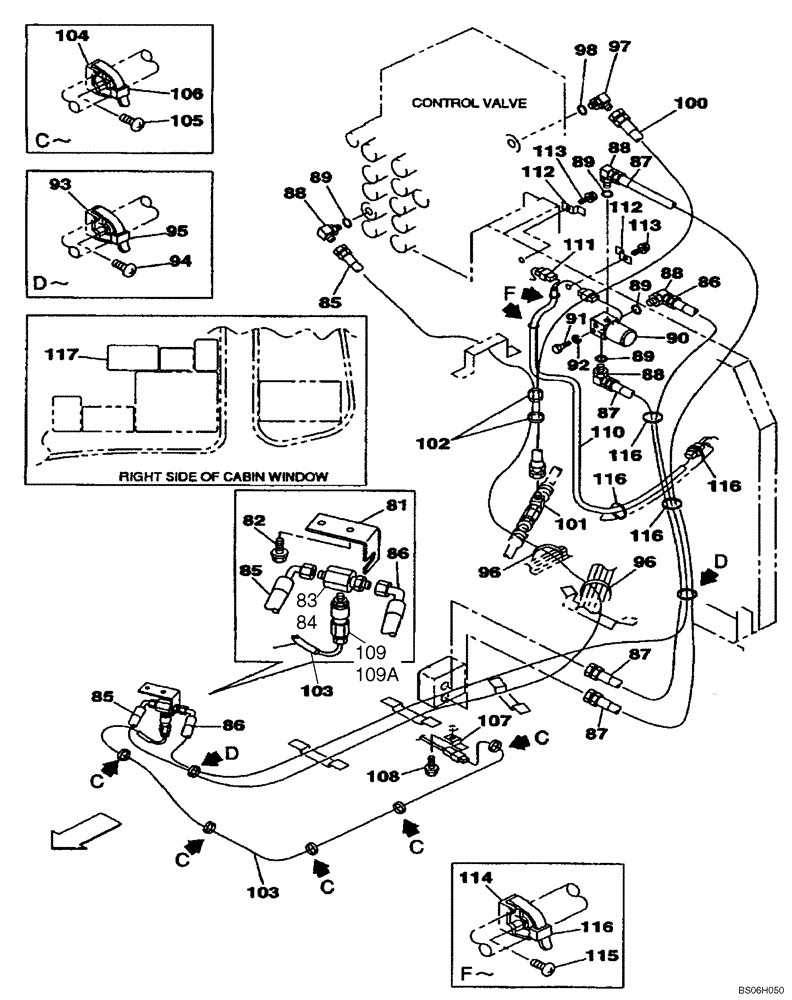

Запчасти Case CX210 (08-52C) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

81

KHJ2127

BRACKET

1шт.

82

166345A1

BOLT

2шт.

83

167852A1

ADAPTER

Used With 159599A1 Sensor, Ref 109

1шт.

84

KHJ11470

ADAPTER

Used With KHR10790 Switch, Ref 109A

1шт.

85

164232A1

HOSE ASSY.

3150 mm (124-1/8 in)

1шт.

86

159009A1

HOSE ASSY.

1шт.

87

153484A1

HOSE ASSY.

2шт.

88

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 89

4шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

162538A1

VALVE

Solenoid; See Figure 08-64

1шт.

91

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

92

892-11006

LOCK WASHER,M6

2шт.

93

150860A1

COLLAR

2шт.

94

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

95

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

96

150071A1

MOUNTING CLIP

1шт.

97

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 98

1шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

164728A1

HYDRAULIC HOSE,6.30 mm ID x 1150.00 mm

1шт.

101

163422A1

TEE

1шт.

102

150071A1

MOUNTING CLIP

2шт.

103

KHR3350

HARNESS

1шт.

104

150860A1

COLLAR

5шт.

105

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

106

150496A1

MOUNTING CLIP

250 mm (10 in)

5шт.

107

165405A1

CLIP

1шт.

108

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

109

159599A1

PRESSURE SWITCH

No Longer Used, Order KHR10790

1шт.

109a

KHR10790

PRESSURE SWITCH

Used With KHJ11470 Adapter, Ref 84

1шт.

110

KHR3329

HARNESS

1шт.

111

168694A1

MULTIPOLE CONNECTOR

1шт.

112

165405A1

CLIP

2шт.

113

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

114

150860A1

COLLAR

2шт.

115

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

116

150496A1

MOUNTING CLIP

250 mm (10 in)

6шт.

117

KHP1755

DECAL

Operation

1шт.

120

150067A1

MOUNTING CLIP

1шт.
