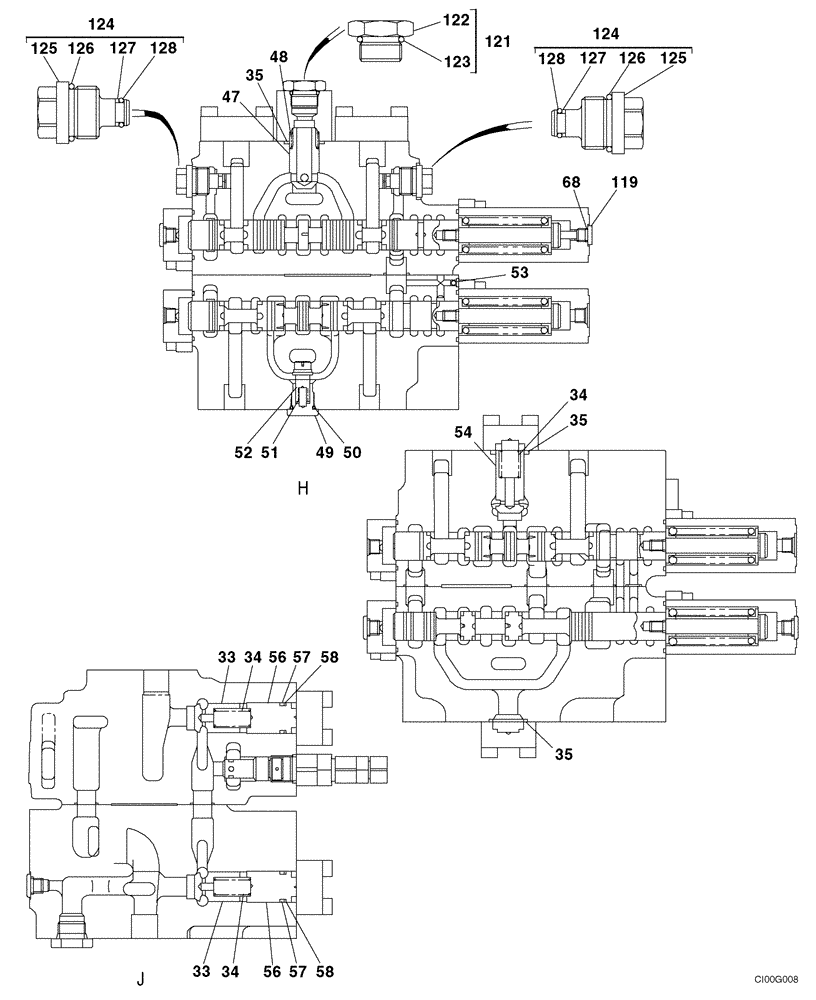

Запчасти Case CX210 (08-40F) - VALVE ASSY - CONTROL (08) - HYDRAULICS

KRJ5753

VALVE, CONTROL

Incl. 33 - 128; Also Includes Parts on Figures 08-40A, 08-40C - 08-40E; Prior To P.I.N. DAC212081

1шт.

KRJ10420

DISTRIBUTOR

Control Valve, Incl. 33 - 128, Also Includes Parts on Figure 08-40B - 08-40E; P.I.N. DAC212082 And After

1шт.

33

LJ00727

VALVE POPPET

2шт.

34

LG00341

SPRING

3шт.

35

154539A1

O-RING

3шт.

47

LJ00728

VALVE POPPET

1шт.

48

LG00342

SPRING

1шт.

49

155464A1

PLUG

1шт.

50

155222A1

O-RING

1шт.

51

156026A1

SPRING

1шт.

52

LJ00729

VALVE POPPET

1шт.

53

NSS

NOT SOLD SEPARAT

Ball

1шт.

54

LJ00730

VALVE POPPET

1шт.

56

LH00251

SPACER

2шт.

57

154507A1

O-RING

2шт.

58

153987A1

BACK-UP RING

2шт.

68

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

119

LK00301

PLUG

1шт.

121

LK00302

PLUG

Incl. 122, 123

2шт.

122

165836A1

PLUG

1шт.

123

154503A1

O-RING

1шт.

124

165839A1

PLUG

Incl. 125 - 128

2шт.

125

NSS

NOT SOLD SEPARAT

Plug

1шт.

126

155223A1

O-RING

1шт.

127

165779A1

RING

1шт.

128

165778A1

O-RING

1шт.
