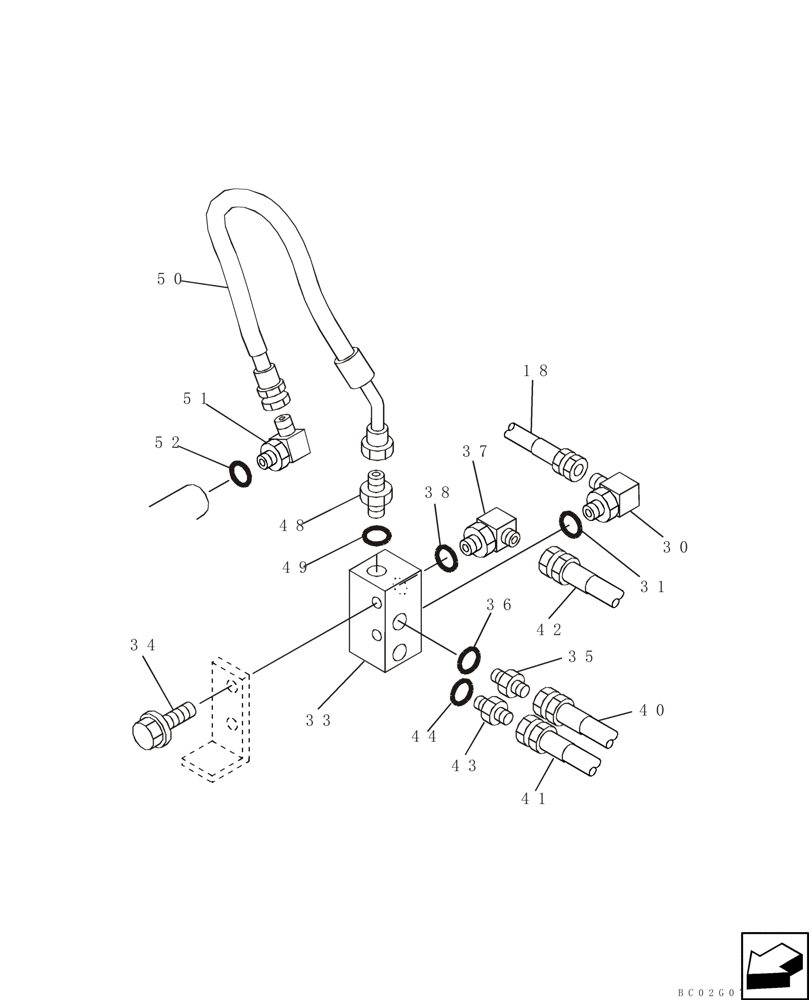

Запчасти Case CX210 (08-27) - MANIFOLD - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

18

KHJ1460

HYDRAULIC HOSE

See Figure 08-26A

1шт.

30

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 31

1шт.

31

154475A1

O-RING

1шт.

33

KRJ6101

MANIFOLD

1шт.

34

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

35

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 38

1шт.

38

154475A1

O-RING

1шт.

40

152773A1

HOSE ASSY.

1850 mm (72-7/8 in); See Figure 08-29

1шт.

41

152773A1

HOSE ASSY.

1850 mm (72-7/8 in); See Figure 08-29

1шт.

42

152713A1

HOSE ASSY.

1700 mm (67 in); See Figure 08-29

1шт.

43

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 49

1шт.

49

154487A1

O-RING

1шт.

50

KRJ6096

HYDRAULIC HOSE,12.70 mm ID x 720.00 mm

1шт.

51

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 52

1шт.

52

154487A1

O-RING

1шт.
