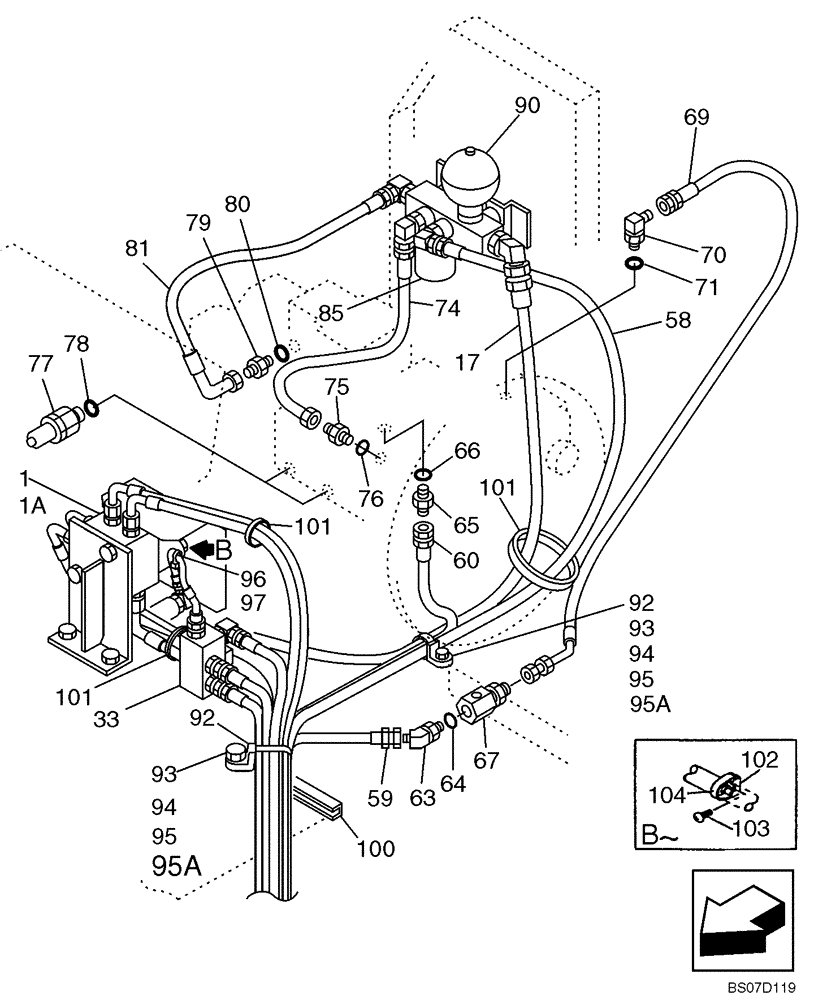

Запчасти Case CX210 (08-26) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (Nov 3 2009 8:16AM) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
RETURN
1шт.
1
KHJ1972
SOLENOID VALVE
Solenoid; See Figure 08-26A; 08-44B: No Longer Available, Order KHJ15460
1шт.
1a
KHJ15460
SOLENOID VALVE
See Figure 08-26A; 08-44C
1шт.
17
163716A1
HOSE
See Figure 08-26A, 08-28
1шт.
33
KRJ6101
MANIFOLD
See Figure 08-27
1шт.
58
KHJ2691
HYDRAULIC HOSE,6.30 mm ID x 2600.00 mm
See Figure 08-28, 08-29; Replaces 152270A1
1шт.
59
KHJ1228
HYDRAULIC HOSE,6.35 mm ID x 650.00 mm
See Figure 08-29; Replaces 157852A1
1шт.
60
KHJ2692
HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm
See Figure 08-29; Replaces 152778A1
1шт.
63
150933A1
ELBOW
Incl. 64
1шт.
64
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
65
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 66
1шт.
66
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
67
167662A1
FITTING
1шт.
69
KHJ2686
HYDRAULIC HOSE,6.30 mm ID x 850.00 mm
Replaced KAJ3466
1шт.
70
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 71
1шт.
71
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
74
FAJ0418
HOSE
1шт.
75
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 76
1шт.
76
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
77
KHJ1584
UNION
Incl. 78
2шт.
78
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
79
161084A1
ADAPTER
Incl. 80
1шт.
81
KHJ1057
HYDRAULIC HOSE,9.52 mm ID x 650.00 mm
1шт.
85
KHJ2562
MANIFOLD
See Figure 08-28; Replaces KHJ1583, KHJ2431
1шт.
90
150894A1
ACCUMULATOR
See Figure 08-28
1шт.
92
KHR2582
CLAMP
2шт.
93
KHJ2298
BOLT,Spcl
Replaces 627-10030
2шт.
94
892-11010
LOCK WASHER,M10
If used
2шт.
95
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
If Used
2шт.
95a
KHJ2622
RUBBER PAD
If Used
2шт.
96
KHR2583
CLAMP
1шт.
97
159906A1
BOLT,Sems, Hex, M6 x 20mm, Spcl
1шт.
100
167839A1
GROMMET
1шт.
101
150071A1
MOUNTING CLIP
1шт.
102
150860A1
COLLAR
1шт.
103
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
104
150496A1
MOUNTING CLIP
1шт.
Выбрано товаров: 38
