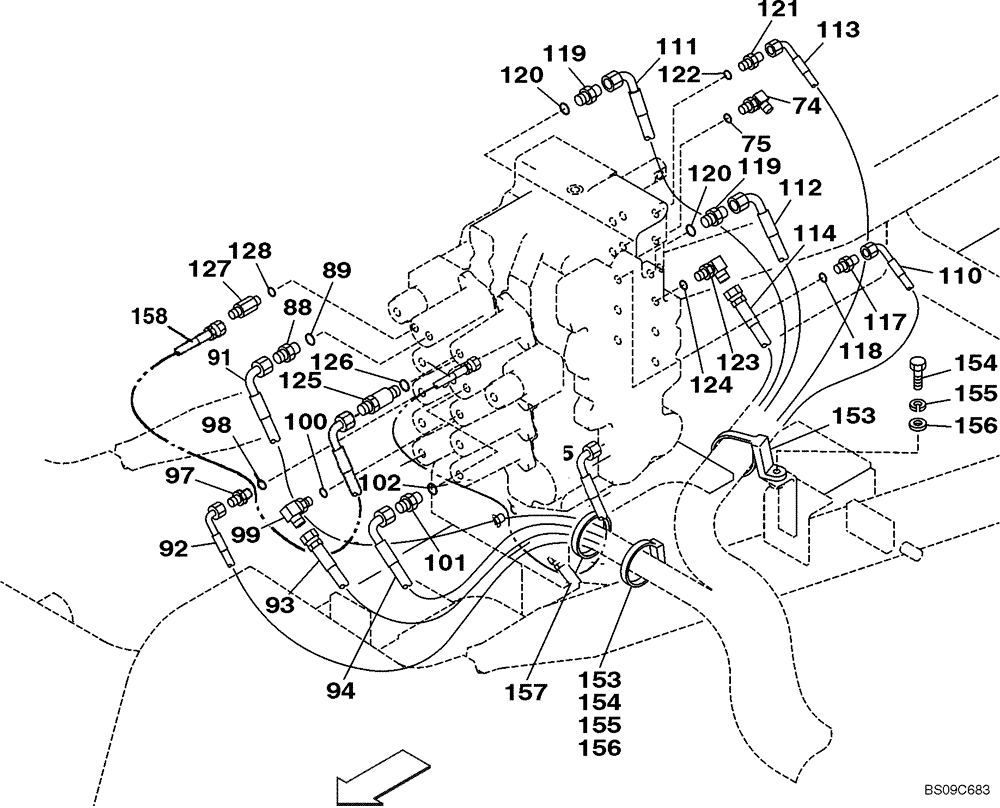

Запчасти Case CX210 (08-22) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

MODELS WITHOUT LOAD HOLD

1шт.

74

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 75

1шт.

75

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 89

1шт.

89

154475A1

O-RING

1шт.

91

162565A1

HOSE ASSY.

1000 mm (39-3/8 in); See Figure 08-19

1шт.

92

KHJ1608

HOSE

See Figure 08-18

1шт.

93

159071A1

HOSE

See Figure 08-18

1шт.

94

159224A1

HOSE ASSY.

900 mm (35-1/2 in); See Figure 08-18

1шт.

97

159848A1

ORIFICE

Special, With Orifice; Incl. 98

1шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

153559A1

ELBOW

Incl. 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 102

1шт.

102

154475A1

O-RING

1шт.

110

161657A1

HOSE ASSY.

1600 mm (63 in); See Figure 08-18

1шт.

111

161492A1

HOSE

See Figure 08-19

1шт.

112

KHJ1606

HYDRAULIC HOSE

See Figure 08-19

1шт.

113

162648A1

HOSE

See Figure 08-19

1шт.

114

157963A1

HOSE

See Figure 08-19

1шт.

117

159848A1

ORIFICE

Incl. 118

1шт.

118

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

119

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 120

2шт.

120

154475A1

O-RING

1шт.

121

162366A1

ADAPTER

Incl. 122

1шт.

122

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

123

153559A1

ELBOW

Incl. 124

1шт.

124

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

125

163104A1

ADAPTER

Incl. 126

1шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

127

162554A1

FITTING

Incl. 128

1шт.

128

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

153

KHR2582

CLAMP

2шт.

154

KHJ2298

BOLT,Spcl

2шт.

155

892-11010

LOCK WASHER,M10

If used

2шт.

156

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

If Used

2шт.

157

150071A1

MOUNTING CLIP

1шт.
