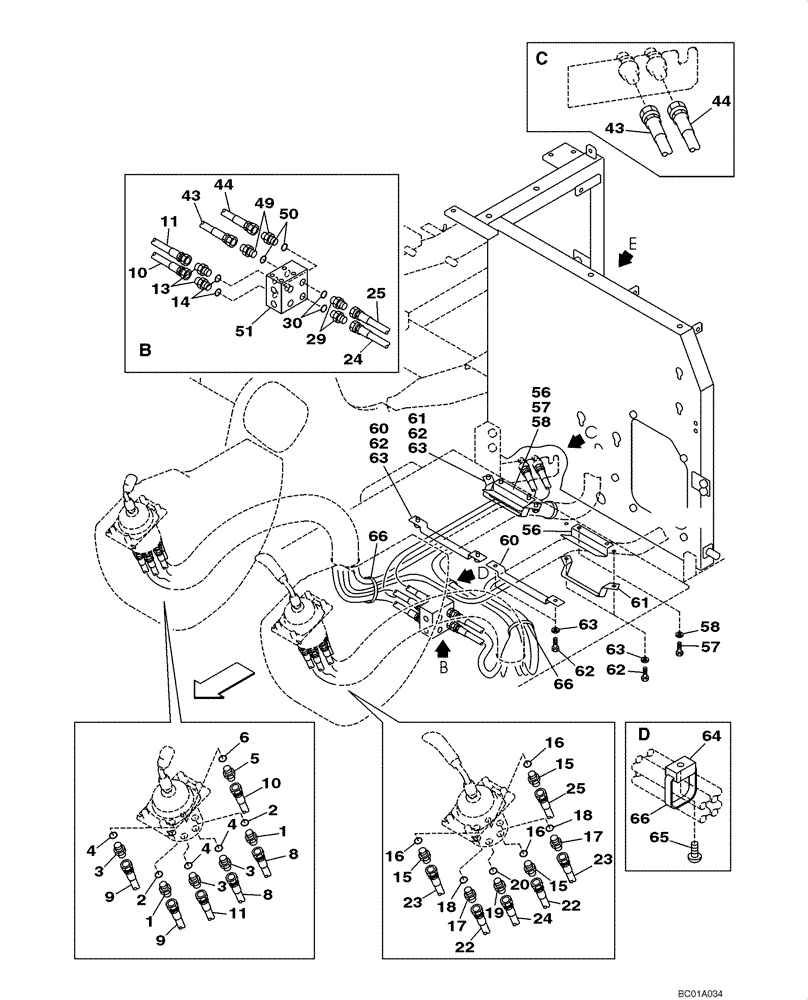

Запчасти Case CX160 (08-23) - PILOT CONTROL LINES, ATTACHMENT - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

KHJ1402

ADAPTER

Incl. 2

2шт.

2

154475A1

O-RING

1шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 4

3шт.

4

154475A1

O-RING

1шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Incl. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-26

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-26

2шт.

10

159214A1

HYDRAULIC HOSE

1200 mm (47-1/4 in)

1шт.

11

159213A1

HYDRAULIC HOSE

1150 mm (45-3/8 in)

1шт.

13

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 14

2шт.

14

154475A1

O-RING

1шт.

15

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 16

3шт.

16

154475A1

O-RING

1шт.

17

KHJ1402

ADAPTER

Incl. 18

2шт.

18

154475A1

O-RING

1шт.

19

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Incl. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-26

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-26

2шт.

24

159214A1

HYDRAULIC HOSE

1200 mm (47-1/4 in)

1шт.

25

159213A1

HYDRAULIC HOSE

1150 mm (45-3/8 in)

1шт.

29

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 30

2шт.

30

154475A1

O-RING

1шт.

43

152751A1

HOSE,95.00 mm ID x 1000.00 mm

1шт.

44

152751A1

HOSE,95.00 mm ID x 1000.00 mm

1шт.

49

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 50

2шт.

50

154475A1

O-RING

1шт.

51

KRJ5903

MANIFOLD

1шт.

56

KHJ1397

SUPPORT

2шт.

57

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

58

153081A1

WASHER

4шт.

60

KHJ1393

CLAMP

2шт.

61

KHJ1396

CLAMP

2шт.

62

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

8шт.

63

153081A1

WASHER

8шт.

64

150860A1

COLLAR

1шт.

65

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

66

150071A1

MOUNTING CLIP

3шт.
