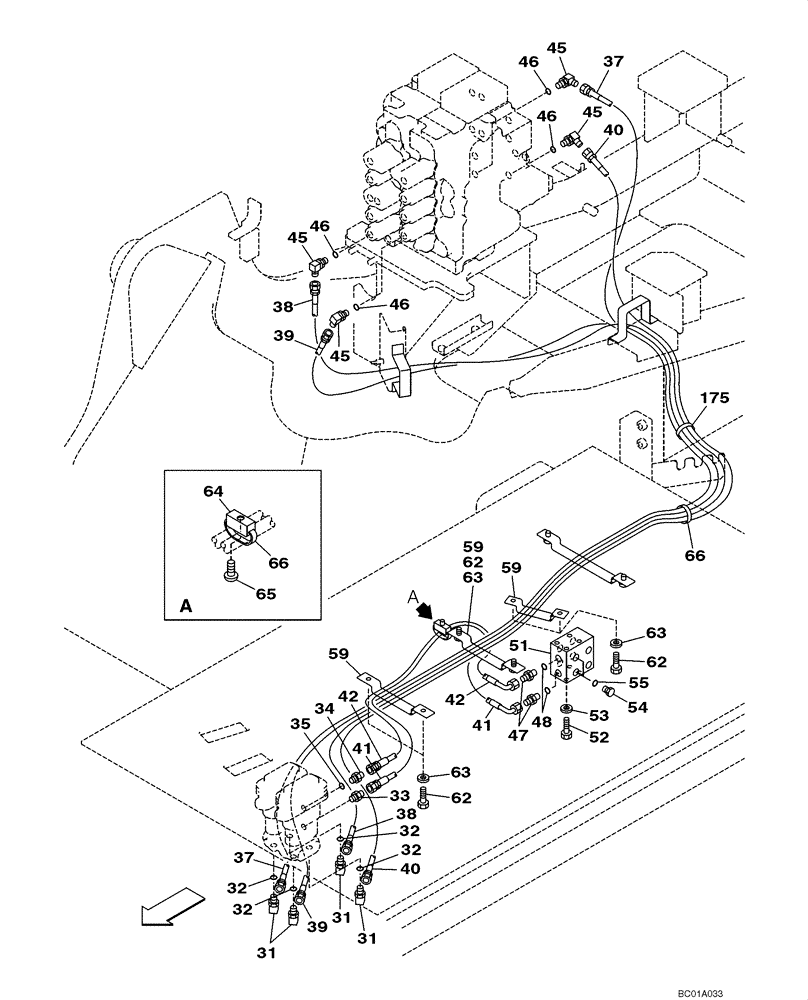

Запчасти Case CX160 (08-20) - PILOT CONTROL LINES, TRAVEL - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

Incl. 154467A1

1шт.

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

157851A1

HOSE

2850 mm (112-1/4 in)

1шт.

38

KHJ1766

HOSE

1шт.

39

158130A1

HOSE,6.3mm ID x 1350mm L

1шт.

40

157996A1

HOSE,6.3mm ID x 2750mm L

2750 mm (108-3/8 in)

1шт.

41

KAJ3524

HYDRAULIC HOSE

1шт.

42

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

45

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 46

4шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

47

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 48

2шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

51

KRJ5903

MANIFOLD

1шт.

52

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

53

153081A1

WASHER

4шт.

54

159002A1

PLUG

Incl. 55, If Used

2шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

KHJ1951

CLAMP

Replaces KHJ1394

3шт.

62

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

63

153081A1

WASHER

6шт.

64

150860A1

COLLAR

2шт.

65

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

66

150071A1

MOUNTING CLIP

2шт.

175

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.
