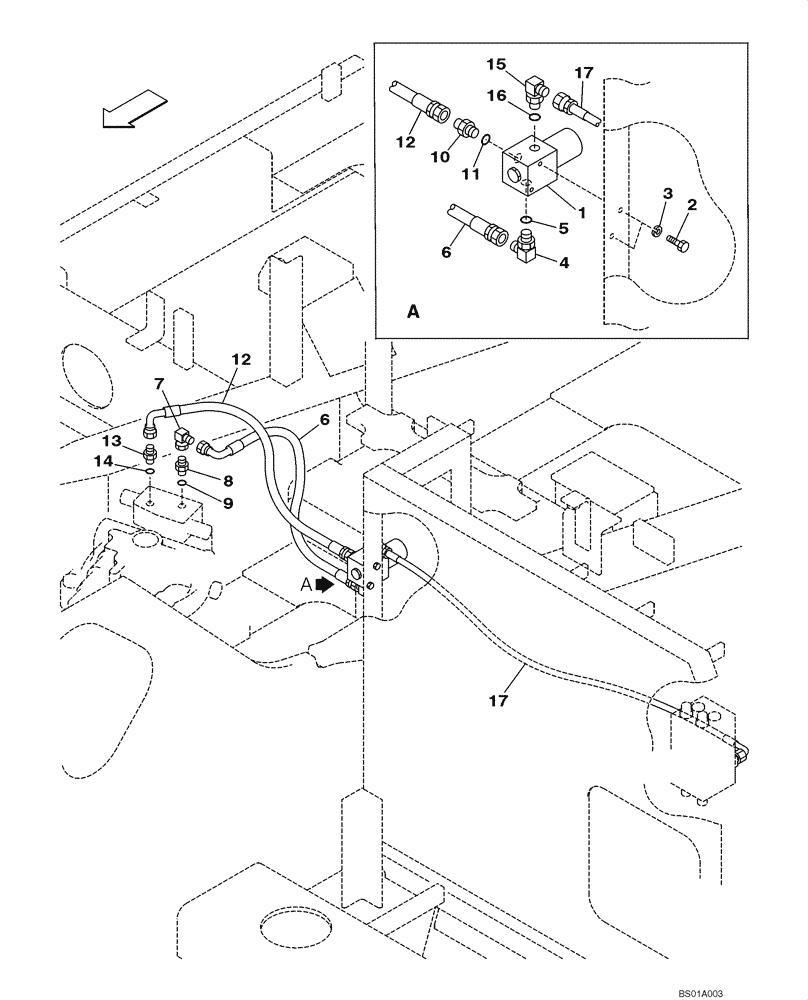

Запчасти Case CX160 (08-19) - HYDRAULICS - FREE SWING (08) - HYDRAULICS

1

159205A1

VALVE

See Figure 08-70

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

3

892-11006

LOCK WASHER,M6

2шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

KLJ0532

HYDRAULIC HOSE,6.30 mm ID x 380.00 mm

1шт.

7

163814A1

ELBOW

1шт.

8

159848A1

ORIFICE

Incl. 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KLJ0577

HOSE ASSY.

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

162563A1

HOSE ASSY.

1шт.
