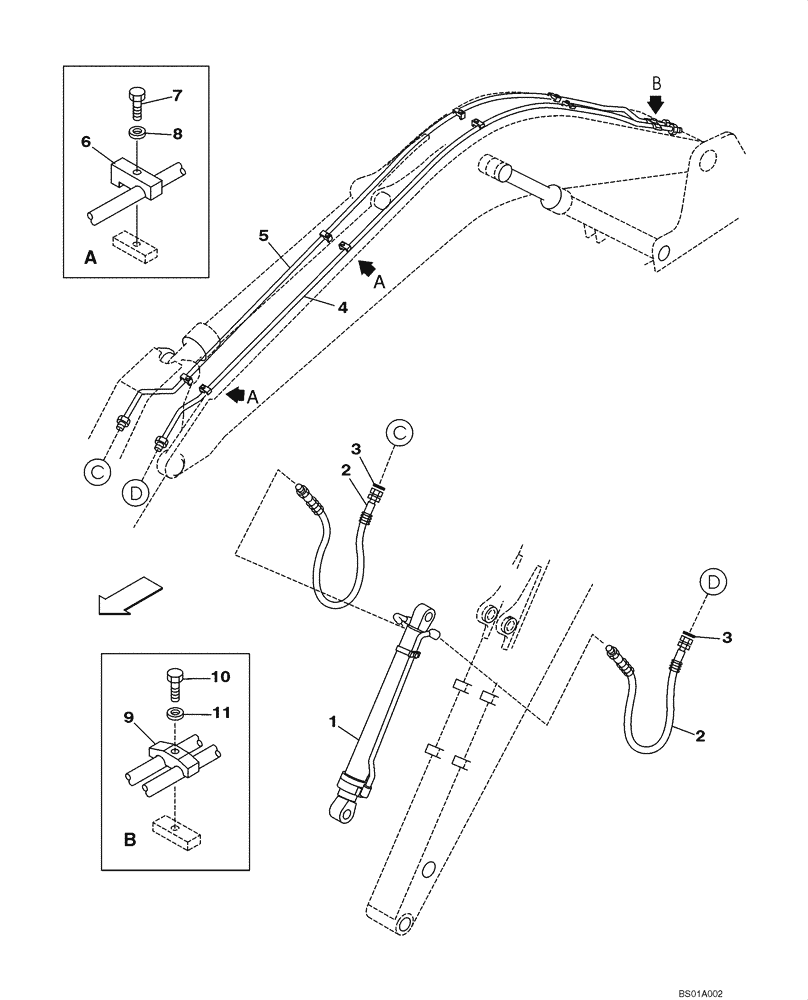

Запчасти Case CX160 (08-18) - HYDRAULICS - BUCKET, 3,10 METER (10 FT 2 IN) ARM (08) - HYDRAULICS

1

KLV0309

BUCKET CYLINDER

Bucket, See Figure 08-78

1шт.

2

KNV1153

HYDRAULIC HOSE,19.00 mm ID x 1750.00 mm

2шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

4

KLV0425

HYD TUBE,2383.3, 3077.6 mm L

Replaces KLV0422, P.I.N DAC0716099 - DAC0716366

1шт.

4

KLV0466

PIPE ASSY.

P.I.N. DAC0716367 -

1шт.

5

KLV0423

HYD TUBE,2368.3, 3077.8 mm L

1шт.

6

151486A1

CLAMP BRACKET

4шт.

7

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

8

150811A1

WASHER

M12

4шт.

9

159742A1

COLLAR

1шт.

10

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

11

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

1шт.
