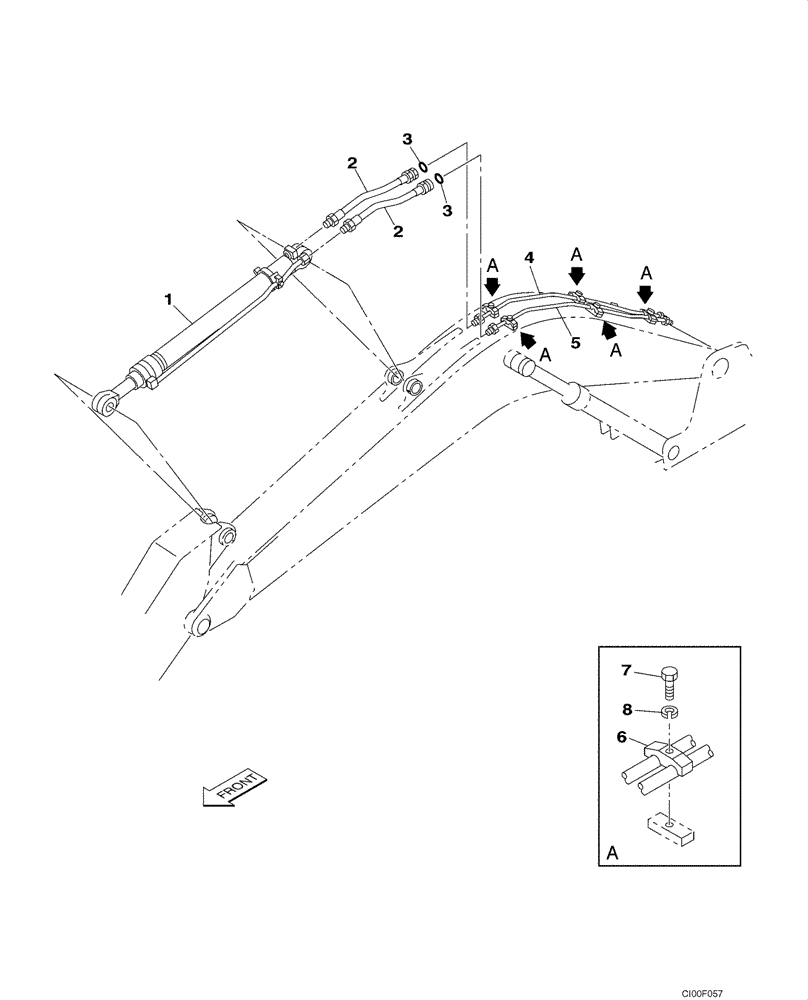

Запчасти Case CX160 (08-14) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

KLV0308

HYDRAULIC CYLINDER

Arm, See Figure 08-75

1шт.

2

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

2шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

4

KLV0314

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

5

KLV0313

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

6

159742A1

COLLAR

5шт.

7

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

5шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

5шт.
