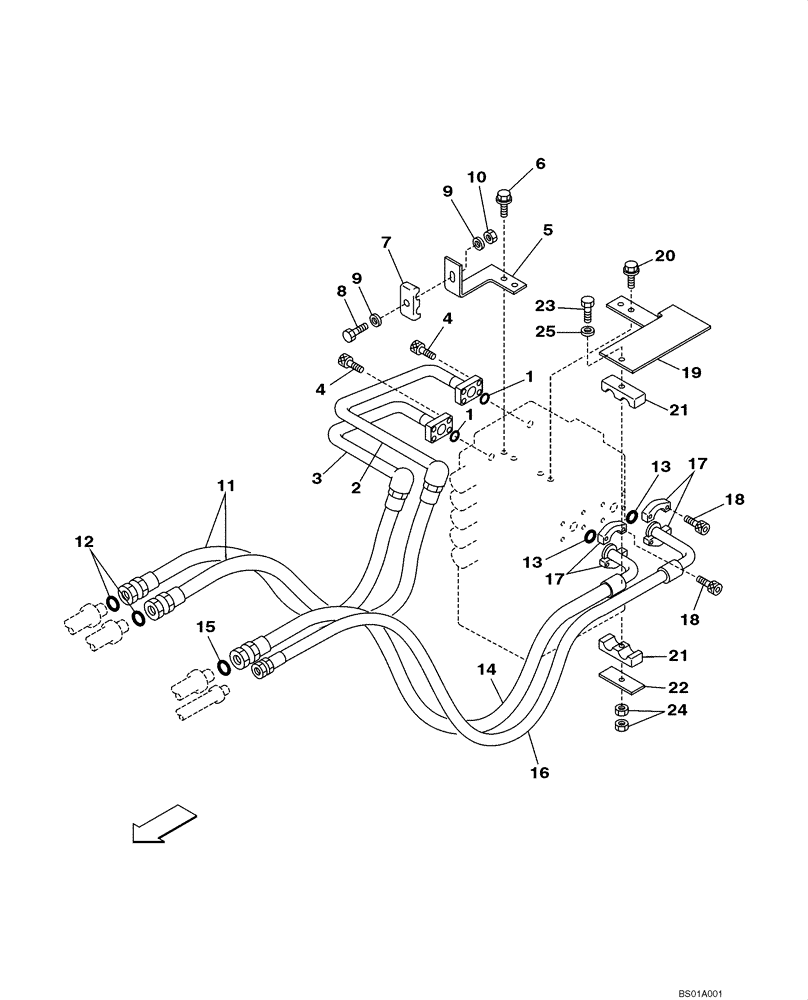

Запчасти Case CX160 (08-13) - HYDRAULICS - ARM AND BUCKET; P.I.N. DAC0716099 - DAC0716366 (08) - HYDRAULICS

1

154528A1

O-RING

2шт.

2

KLJ0514

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

3

KLJ0515

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

5

KLJ0516

BRACKET

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

7

152742A1

COLLAR

1шт.

8

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

9

150811A1

WASHER

2шт.

10

829-1412

NUT,M12, Cl 10.9

1шт.

11

KLJ0517

HYDRAULIC HOSE,15.90 mm ID x 1040.00 mm

2шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

13

161096A1

O-RING

2шт.

14

KLJ0518

HYDRAULIC HOSE,15.90 mm ID x 1340.00 mm

1шт.

15

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

16

KLJ0519

HOSE ASSY.

1шт.

17

161080A1

FLANGE

Split

4шт.

18

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

8шт.

19

KLJ0584

BRACKET

1шт.

20

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

21

161179A1

HOSE CLAMP

2шт.

22

161160A1

PLATE, SPACER

PLATE,SPACER

1шт.

22

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

1шт.

23

829-1412

NUT,M12, Cl 10.9

2шт.

24

150811A1

WASHER

M12

2шт.
