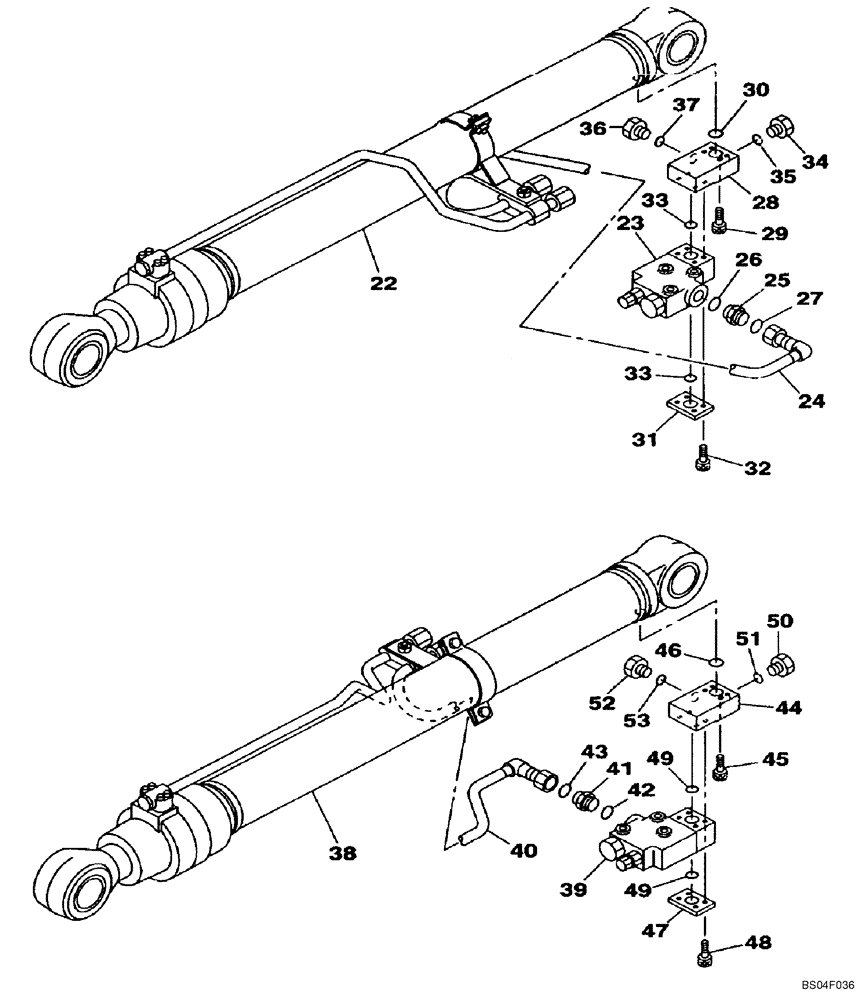

Запчасти Case CX160 (08-12) - HYDRAULICS - BOOM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

22

KLV0351

HYDRAULIC CYLINDER

Boom, Right Hand, See Figure 08-72

1шт.

23

KLV0471

VALVE SECTION

1шт.

24

KLV0381

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

25

KHJ1348

ADAPTER

Incl. 26

1шт.

26

154503A1

O-RING

1шт.

27

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

28

KLV0383

BLOCK ASSY.

1шт.

29

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

1шт.

30

154529A1

O-RING

1шт.

31

161955A1

FLANGE

Flat

1шт.

32

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

1шт.

33

154549A1

O-RING

2шт.

34

159085A1

PLUG

Incl. 35

2шт.

35

154487A1

O-RING

2шт.

36

153105A1

PLUG

Incl.37

1шт.

37

154475A1

O-RING

1шт.

38

KLV0352

HYDRAULIC CYLINDER

Boom, Left Hand, See Figure 08-74

1шт.

39

KLV0471

VALVE SECTION

1шт.

40

KLV0382

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

41

KHJ1348

ADAPTER

Incl. 42

1шт.

42

154503A1

O-RING

1шт.

43

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

44

KLV0383

BLOCK ASSY.

1шт.

45

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

46

154529A1

O-RING

1шт.

47

161955A1

FLANGE

Flat

1шт.

48

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

1шт.

49

154549A1

O-RING

2шт.

50

159085A1

PLUG

Incl. 51

2шт.

51

154487A1

O-RING

1шт.

52

153105A1

PLUG

Incl. 53

1шт.

53

154475A1

O-RING

1шт.
