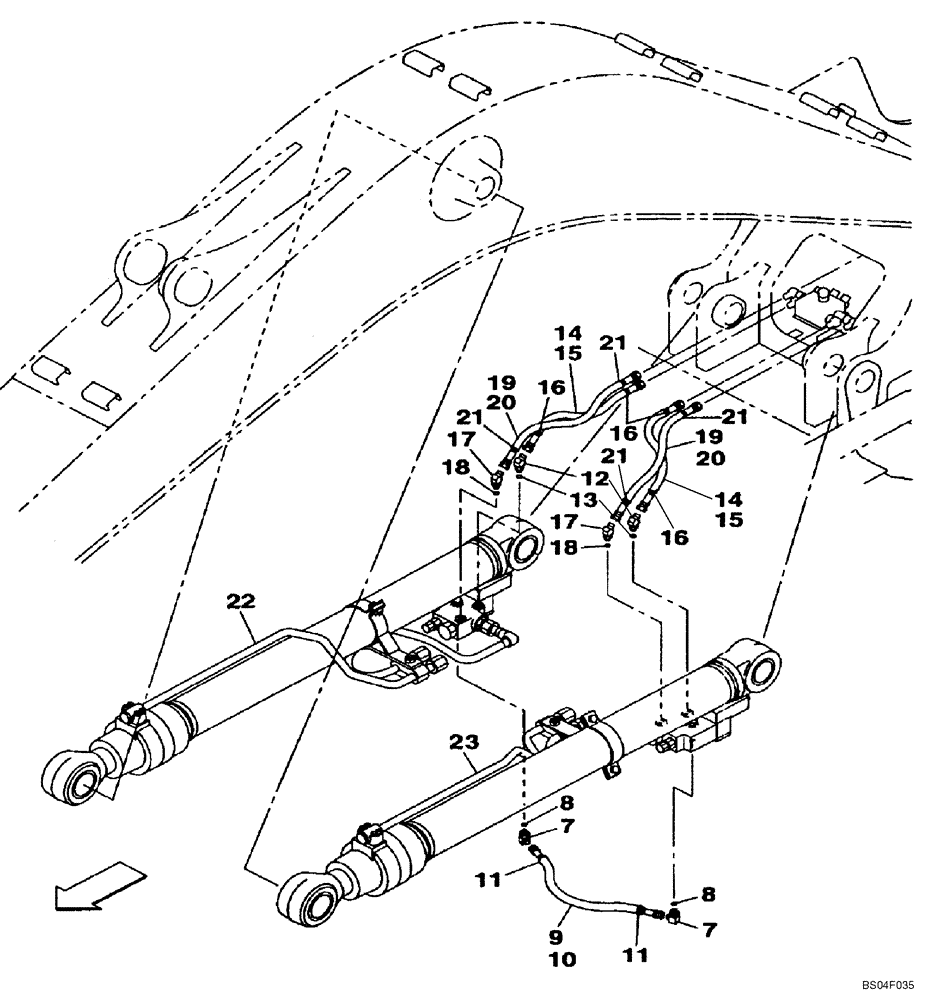

Запчасти Case CX160 (08-11) - HYDRAULICS - BOOM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

7

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 8

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

153498A1

HOSE ASSY.

1шт.

10

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

1шт.

11

150067A1

MOUNTING CLIP

2шт.

12

161087A1

ELBOW

Incl. 13

2шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

2шт.

15

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

2шт.

16

150067A1

MOUNTING CLIP

4шт.

17

157584A1

ELBOW

Incl. 18

2шт.

18

154475A1

O-RING

1шт.

19

MPJ7036

HOSE ASSY.,9.50 mm ID x 700.00 mm

2шт.

20

157767A1

PLASTIC-RUBBER TUBE

2шт.

21

150067A1

MOUNTING CLIP

4шт.

22

KLV0351

HYDRAULIC CYLINDER

Boom, Right Hand, See Figure 08-72

1шт.

23

KLV0352

HYDRAULIC CYLINDER

Boom, Left Hand, See Figure 08-74

1шт.
