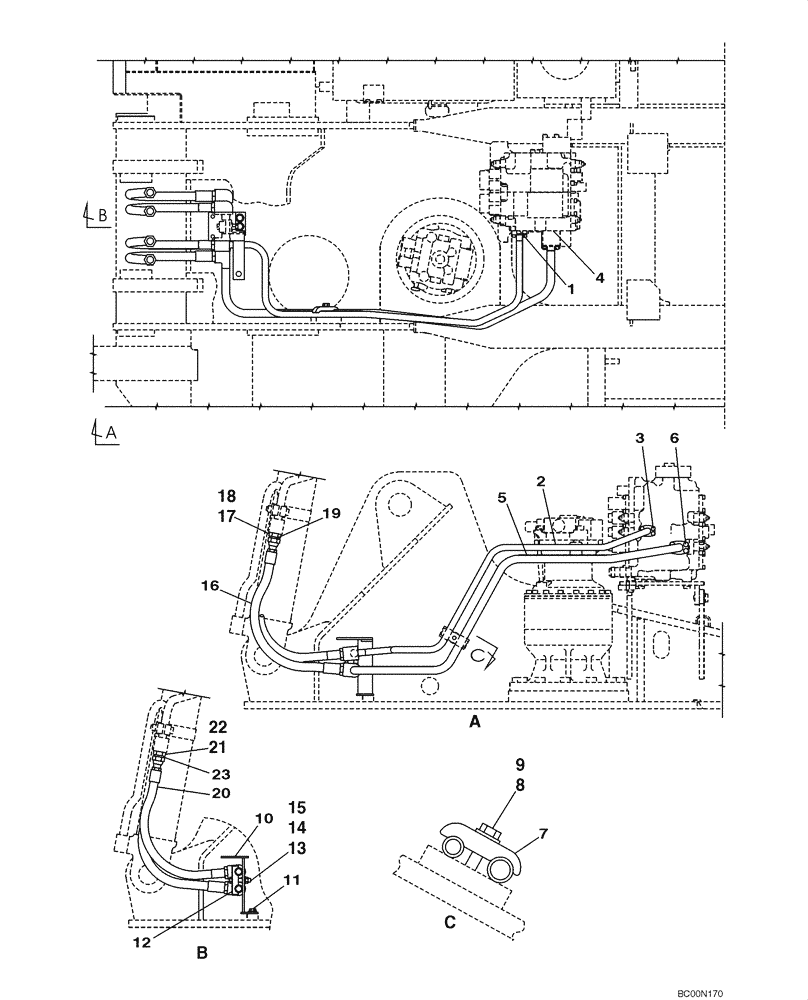

Запчасти Case CX160 (08-10) - HYDRAULICS - BOOM (08) - HYDRAULICS

1

154499A1

O-RING

1шт.

2

KLJ0512

HYD TUBE

1шт.

3

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

4шт.

4

154528A1

O-RING

1шт.

5

KLJ0511

HYD TUBE

1шт.

6

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

7

KNJ2519

CLAMP

1шт.

8

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

1шт.

9

150811A1

WASHER

M12

1шт.

10

KLJ0587

BRACKET

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

12

152085A1

COLLAR

1шт.

13

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

14

829-1412

NUT,M12, Cl 10.9

1шт.

15

150811A1

WASHER

M12

1шт.

16

KLJ0523

HOSE ASSY.

2шт.

17

KHJ1348

ADAPTER

Incl. 18

2шт.

18

154503A1

O-RING

1шт.

19

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

20

KLJ0524

HOSE ASSY.

2шт.

21

KHJ1348

ADAPTER

Incl. 22

2шт.

22

154503A1

O-RING

1шт.

23

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.
