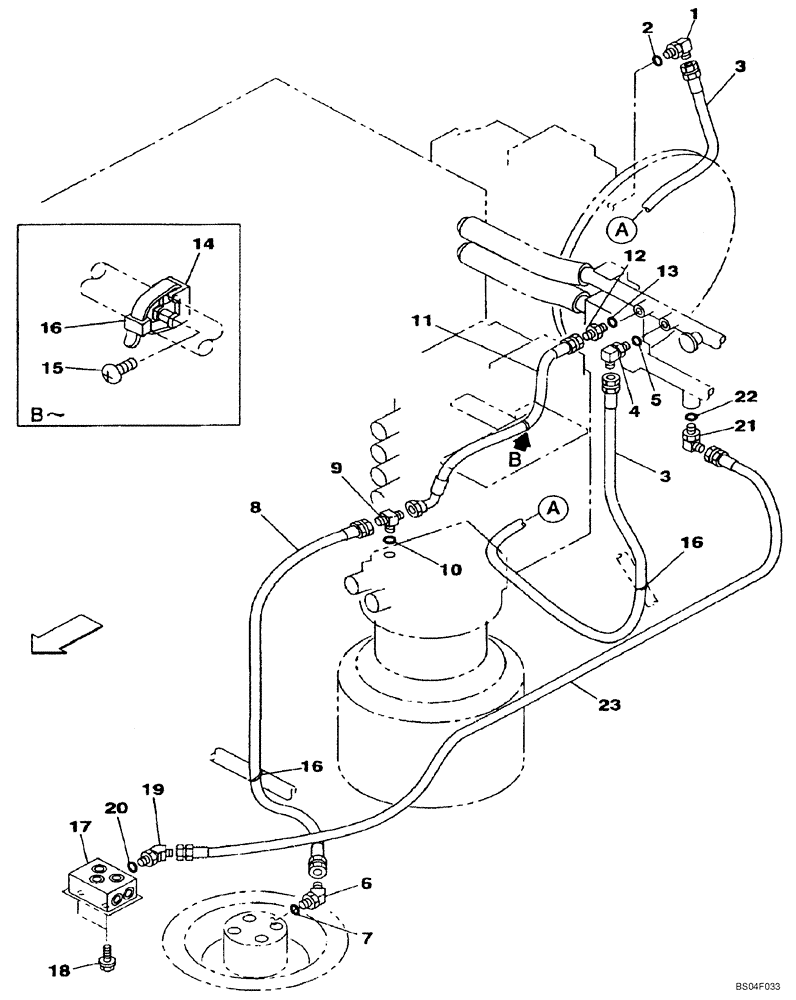

Запчасти Case CX160 (08-08) - HYDRAULICS - DRAIN LINE, MODELS WITH LOAD HOLD; P.I.N. DAC0716098 - DAC0716269 (08) - HYDRAULICS

1

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 2

1шт.

2

154475A1

O-RING

1шт.

3

159074A1

HOSE

1шт.

4

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 5

1шт.

5

154475A1

O-RING

1шт.

6

157585A1

ELBOW

Incl. 7

1шт.

7

154487A1

O-RING

1шт.

8

AWV0309

HOSE ASSY.,12.70 mm ID x 950.00 mm

1шт.

9

KHJ1157

TEE

Incl. 10

1шт.

10

154475A1

O-RING

1шт.

11

KLJ0534

HOSE ASSY.

1шт.

12

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 13

1шт.

13

154487A1

O-RING

1шт.

14

150860A1

COLLAR

1шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

16

150496A1

MOUNTING CLIP

3шт.

17

KRJ6438

MANIFOLD VALVE

1шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

19

157585A1

ELBOW

Incl. 20

1шт.

20

154487A1

O-RING

1шт.

21

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 22

1шт.

22

154487A1

O-RING

1шт.

23

KRJ6431

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

1шт.
