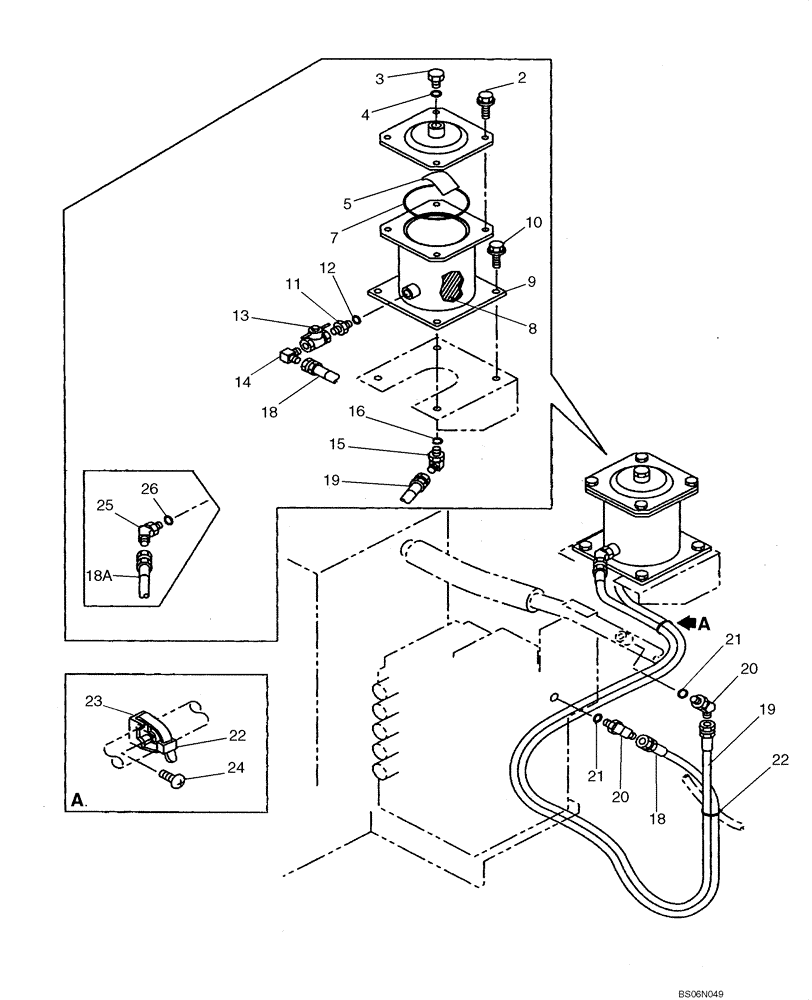

Запчасти Case CX160 (08-06) - HYDRAULICS - BYPASS FILTER (08) - HYDRAULICS

KHJ1488

FILTER ASSY

Incl. 2 - 9

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

3

159285A1

PLUG

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

KHJ1487

SPRING

1шт.

6

KHJ1486

COVER

1шт.

7

154797A1

O-RING

1шт.

8

167857A1

HYDRAULIC OIL FILTER

1шт.

9

KHJ1485

BOX

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

11

152899A1

HYD CONNECTOR

Incl. 12; No Longer Used, For Service Order Ref 25 Elbow And Ref 18A Hose

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

158923A1

DRAIN VALVE

No Longer Used, For Service Order Ref 25 Elbow And Ref 18A Hose

1шт.

14

153596A1

ADAPTER

No Longer Used, For Service Order Ref 25 Elbow And Ref 18A Hose

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

152581A1

HOSE,6.3mm ID x 1900mm L

Used with Ref 11 - 14

1шт.

18a

152773A1

HOSE ASSY.

1850 mm (72-13/16 in); Used With Ref 26 Elbow

1шт.

19

152709A1

HOSE,6.4mm ID x 2100mm L

1шт.

20

150933A1

ELBOW

Incl. 21

2шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

23

150860A1

COLLAR

1шт.

24

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

25

150933A1

ELBOW

Incl. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
