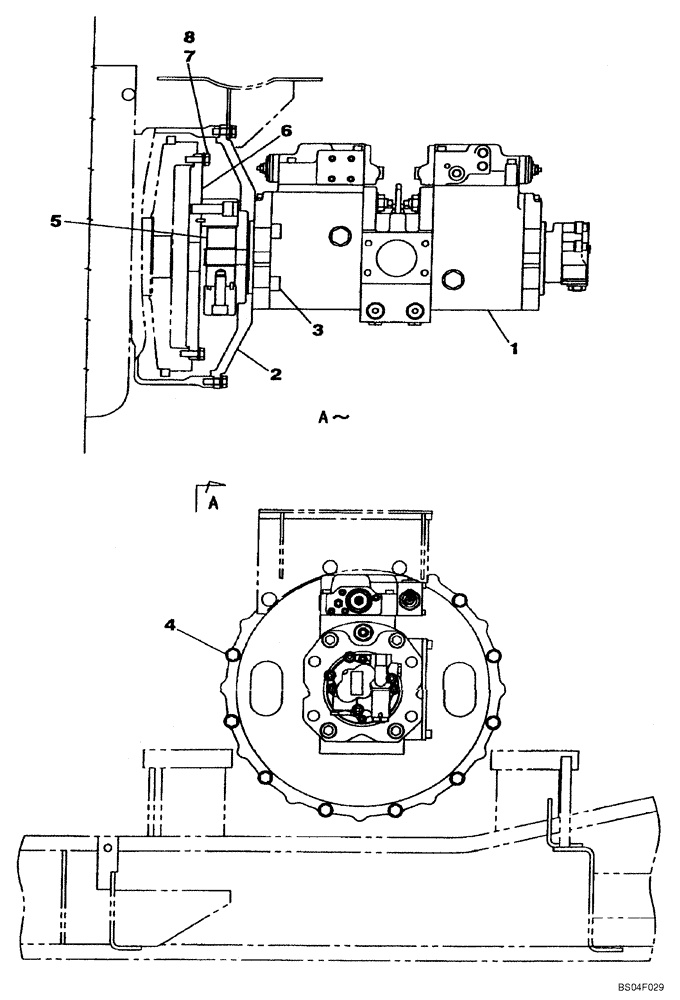

Запчасти Case CX160 (08-02A) - PUMP ASSY, HYDRAULIC - COUPLING; IF USED (08) - HYDRAULICS

1

KLJ0653

PUMP, HYDRAULIC

See Figures 08-88 - 08-91

1шт.

87341976

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341976R

CX160

1шт.

87341976C

Return Number

1шт.

87341977

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

KNJ3028

FLANGE

1шт.

3

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

9шт.

5

KNJ2558

COUPLING

1шт.

6

KNJ2873

FLANGE

1шт.

7

165057A1

BOLT,Hex, 3/8" - 16 x 28.50mm

8шт.

8

150409A1

WASHER

10,5 x 21 x 3,2 mm

8шт.
