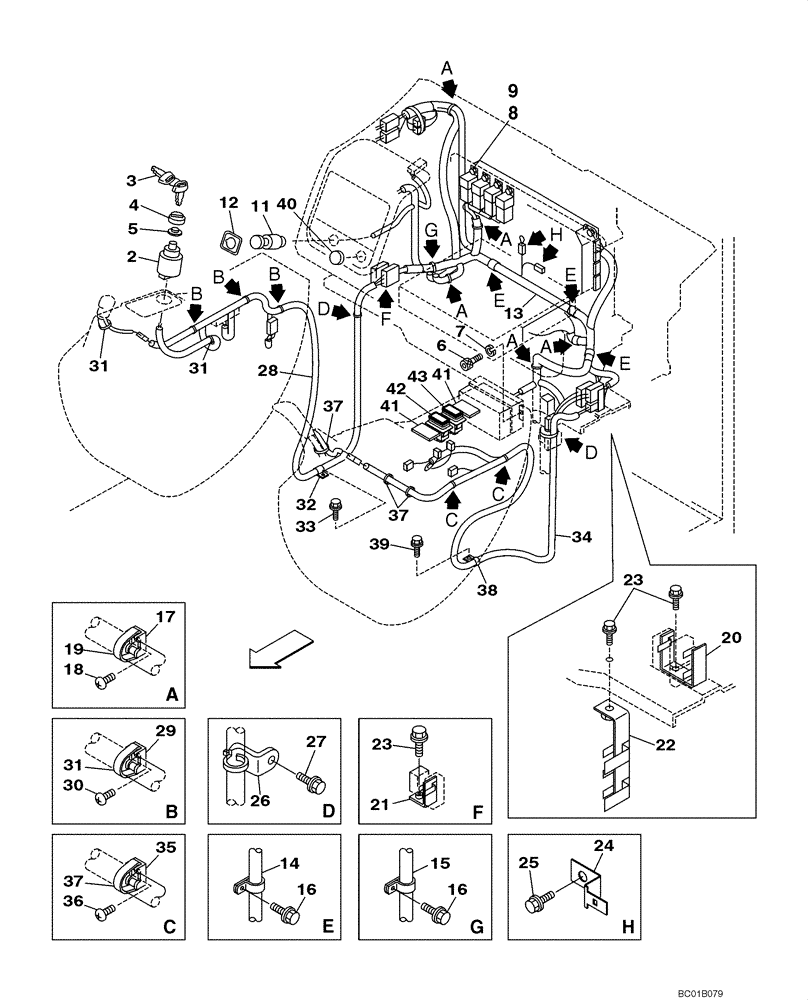

Запчасти Case CX160 (04-02) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

KHR20050

IGNITION SWITCH

SWITCH, IGNITION, Incl. 2 - 5, Replaces KHR3270

1шт.

2

KHR3078

IGNITION SWITCH

1шт.

3

KHR20070

IGNITION KEY

KEY, CASE, Replaces 150979A1

2шт.

4

KHR3080

CAP

1шт.

5

KHR3081

WASHER

1шт.

6

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

7

892-11006

LOCK WASHER,M6

2шт.

8

159919A1

RELAY

4шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

10

KHP1522

DECAL

Relay, Not Illustrated

1шт.

11

KHR2488

LIGHTER, CIGARETTE

1шт.

12

KHR3141

PROTECTOR

1шт.

13

KNR0677

HARNESS

1шт.

13a

231959A1

DIODE

Not Illustrated

1шт.

14

157807A1

COLLAR

3шт.

15

153039A1

CLAMP

1шт.

16

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

17

150860A1

COLLAR

5шт.

18

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

19

150067A1

MOUNTING CLIP

150 mm (6 in)

6шт.

20

KHR2746

BRACKET

1шт.

21

KHR2747

BRACKET

1шт.

22

KHR3336

BRACKET

1шт.

23

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

3шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

24

165405A1

CLIP

2шт.

25

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

26

KHR2580

CLAMP

2шт.

27

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

2шт.

28

KHR3181

HARNESS

1шт.

29

150860A1

COLLAR

3шт.

30

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

31

150067A1

MOUNTING CLIP

150 mm (6 in)

5шт.

32

157806A1

COLLAR

1шт.

33

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

34

KHR3337

HARNESS

1шт.

35

150860A1

COLLAR

Mounting

2шт.

36

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

37

150067A1

MOUNTING CLIP

150 mm (6 in)

5шт.

38

157806A1

COLLAR

1шт.

39

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

40

KHR2743

CAP COVER

1шт.

41

KHR2913

CAP

2шт.

42

KHR3196

SWITCH

1шт.

43

KHR3338

SWITCH

1шт.
