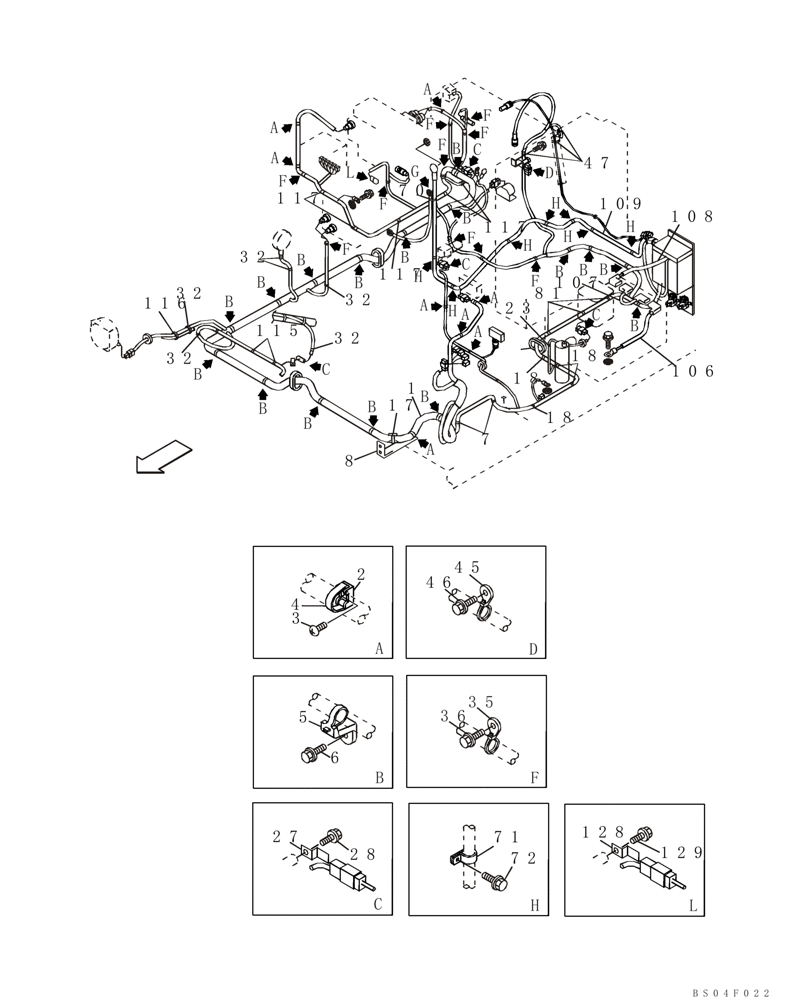

Запчасти Case CX160 (04-01B) - HARNESS, MAIN - CLAMPS AND RETAINERS (P.I.N. DAC0716270 & DAC16XXX - ) (04) - ELECTRICAL SYSTEMS

1

KLR0177

WIRE HARNESS

1шт.

2

150860A1

COLLAR

8шт.

3

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

8шт.

4

150496A1

MOUNTING CLIP

250 mm (10 in)

8шт.

5

KHR2580

CLAMP

16шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

16шт.

7

KHR2787

CLAMP

2шт.

17

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

18

KHR2787

CLAMP

4шт.

23

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

27

165405A1

CLIP

4шт.

28

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

32

KHR2787

CLAMP

6шт.

35

KHR2583

CLAMP

10шт.

36

159602A1

BOLT,Sems, Hex, M6 x 16mm

10шт.

45

KHR2584

CLAMP

1шт.

46

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

47

150496A1

MOUNTING CLIP

250 mm (10 in)

3шт.

70

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

71

162149A1

COLLAR

7шт.

72

167320A1

BOLT,Spcl, M8 x 20mm

7шт.

81

KHR2787

CLAMP

3шт.

106

KHR3057

ELECTRIC CABLE

Battery

1шт.

107

KHR2430

ELECTRIC CABLE

Battery

1шт.

108

KHR3058

ELECTRIC CABLE

Battery

1шт.

109

KHR3348

CABLE ASSY.

Battery

1шт.

115

KHR2787

CLAMP

2шт.

116

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

117

KHR2787

CLAMP

5шт.

128

165405A1

CLIP

1шт.

129

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.
