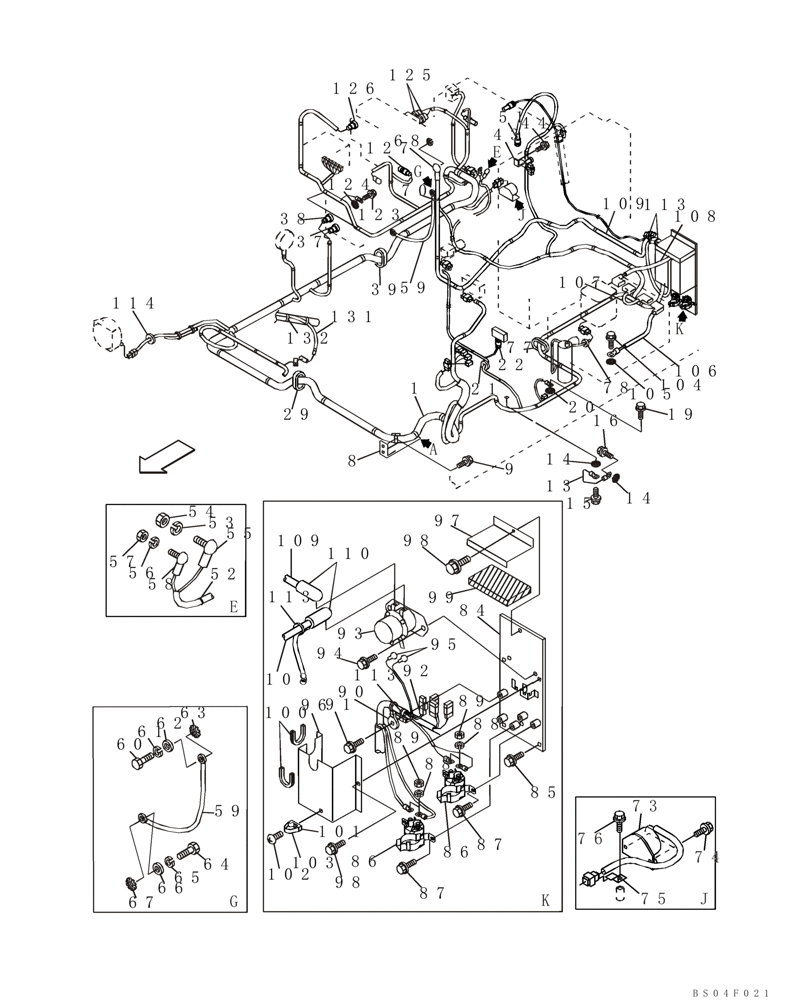

Запчасти Case CX160 (04-01A) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (P.I.N. DAC0716270 & DAC16XXX - ) (04) - ELECTRICAL SYSTEMS

1

KLR0177

WIRE HARNESS

1шт.

8

KRR1251

BRACKET

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

13

KHR2713

ELECTRIC CABLE

Ground

1шт.

14

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

15

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

16

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

19

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

20

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

21

KMR0307

GROMMET

1шт.

22

159599A1

PRESSURE SWITCH

Auxiliary/Swing

1шт.

22

KHR10790

PRESSURE SWITCH

Use If Switch Has A Pigtail Connector

1шт.

29

164687A1

GROMMET

1шт.

37

159900A1

PRESSURE SWITCH

Pressure, Travel (Back-up Alarm)

1шт.

37

KHR10810

PRESSURE SWITCH

SENSOR, Use If Switch Has A Pigtail Connector

1шт.

38

159899A1

PRESSURE SWITCH

Pressure, Upper

1шт.

38

KHR10800

PRESSURE SWITCH

Use If Switch Has A Pigtail Connector

1шт.

39

KRH1268

GROMMET

1шт.

43

KNR0690

BRACKET

1шт.

44

167518A1

BOLT

1шт.

51

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

52

KHR2787

CLAMP

1шт.

53

892-11008

LOCK WASHER,8mm ID

1шт.

54

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

55

159182A1

DUST CAP

1шт.

56

892-11005

LOCK WASHER,M5

1шт.

57

825-1405

NUT,M5, Cl 8

1шт.

58

159173A1

CAP

1шт.

59

KHR3267

CABLE ASSY.

1шт.

60

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

61

892-11012

LOCK WASHER,M12

1шт.

62

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

63

893-11012

LOCK WASHER,Ext Tooth, M12

1шт.

64

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

65

892-11010

LOCK WASHER,M10

1шт.

66

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

67

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

68

159185A1

CAP

1шт.

73

KHR3852

ALARM

Travel

1шт.

74

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

75

165405A1

CLIP

1шт.

76

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

77

KNR0617

GROMMET

1шт.

78

159656A1

GROMMET

1шт.

84

KNR0687

BRACKET

1шт.

85

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

86

159898A1

RELAY

2шт.

87

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

88

892-11006

LOCK WASHER,M6

4шт.

89

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

90

KHR2583

CLAMP

1шт.

91

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

92

159902A1

FUSE

65A fuse - starter

1шт.

93

159897A1

RELAY

1шт.

94

KHR2309

BOLT,Spcl

2шт.

95

159171A1

CAP

2шт.

96

KNR0603

COVER

1шт.

97

KNR0604

COVER

1шт.

98

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

99

KNR0618

SEAL

1шт.

100

KNR0619

RUBBER BLOCK

2шт.

101

150860A1

COLLAR

1шт.

102

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

103

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

104

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

105

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

106

KHR3057

ELECTRIC CABLE

Battery

1шт.

107

KHR2430

ELECTRIC CABLE

Battery

1шт.

108

KHR3058

ELECTRIC CABLE

Battery

1шт.

109

KHR3348

CABLE ASSY.

Battery

1шт.

110

162212A1

TERMINAL CONNECTOR

Terminal

2шт.

113

150496A1

MOUNTING CLIP

250 mm (10 in)

4шт.

114

159656A1

GROMMET

1шт.

123

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

124

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

125

168135A1

SENSOR,50 MPa

Pressure, Includes 154475A1

2шт.

154475A1

O-RING

1шт.

126

KHR2915

SENSOR,5 MPa

Pressure (neg-cont.)

1шт.

127

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

131

KHR2714

HARNESS

1шт.

132

150496A1

MOUNTING CLIP

250 mm (10 in)

10шт.

133

158962A1

CLIP

1шт.

134

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

1шт.

135

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

136

892-11008

LOCK WASHER,8mm ID

1шт.
