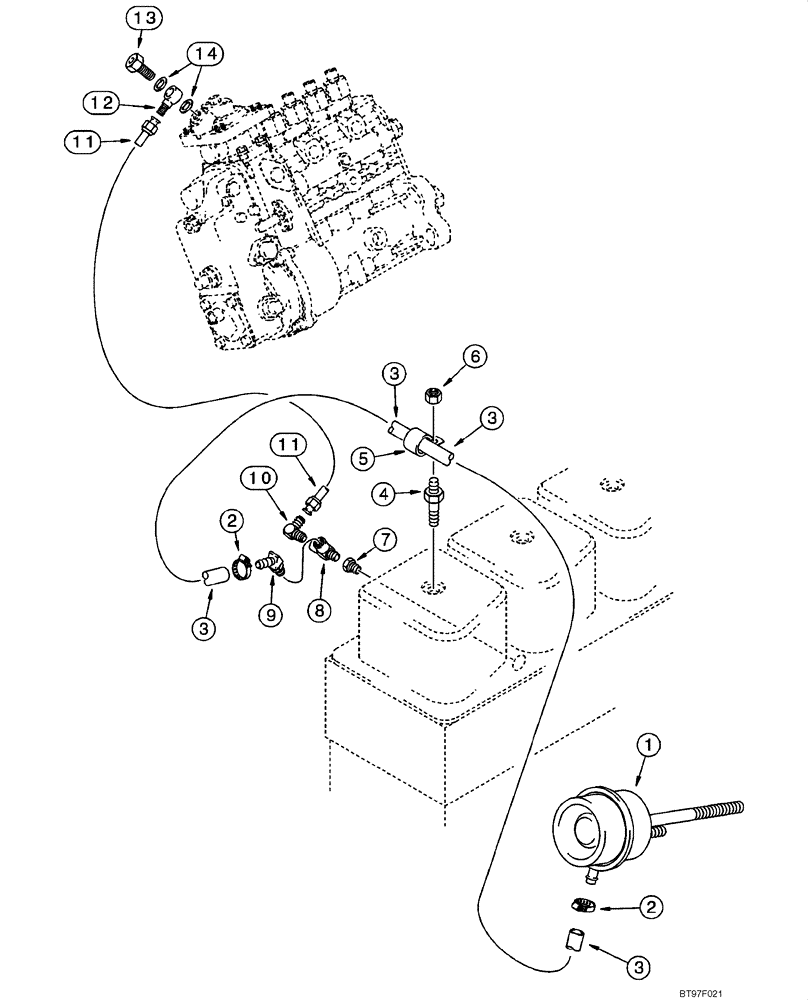

Запчасти Case CX160 (03-06) - ANEROID AND WASTEGATE SYSTEM (03) - FUEL SYSTEM

4TA-390 Emissions Certified Engine

1шт.

1

J594012

ACTUATOR

Replaces J537561

1шт.

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

3

J991047

HOSE,6.35mm ID x 710mm L

Replaces J930166

1шт.

4

J920344

FLANGE BOLT

M8

1шт.

5

J920348

CLIP,ELECTRICAL

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

7

221-87

REDUCER,1/2" NPT x 1/8" NPT

1шт.

8

J282406

TEE

1шт.

9

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

10

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

1шт.

11

J991512

TUBE,6.35 mm OD x 120 mm L

Replaces J934602

1шт.

12

J990881

CONNECTION

Replaces J919644

1шт.

13

J903035

BANJO BOLT

M12 x 24

1шт.

14

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1,5 mm, Replaces J935171

2шт.

15

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

Not Illustrated

1шт.
