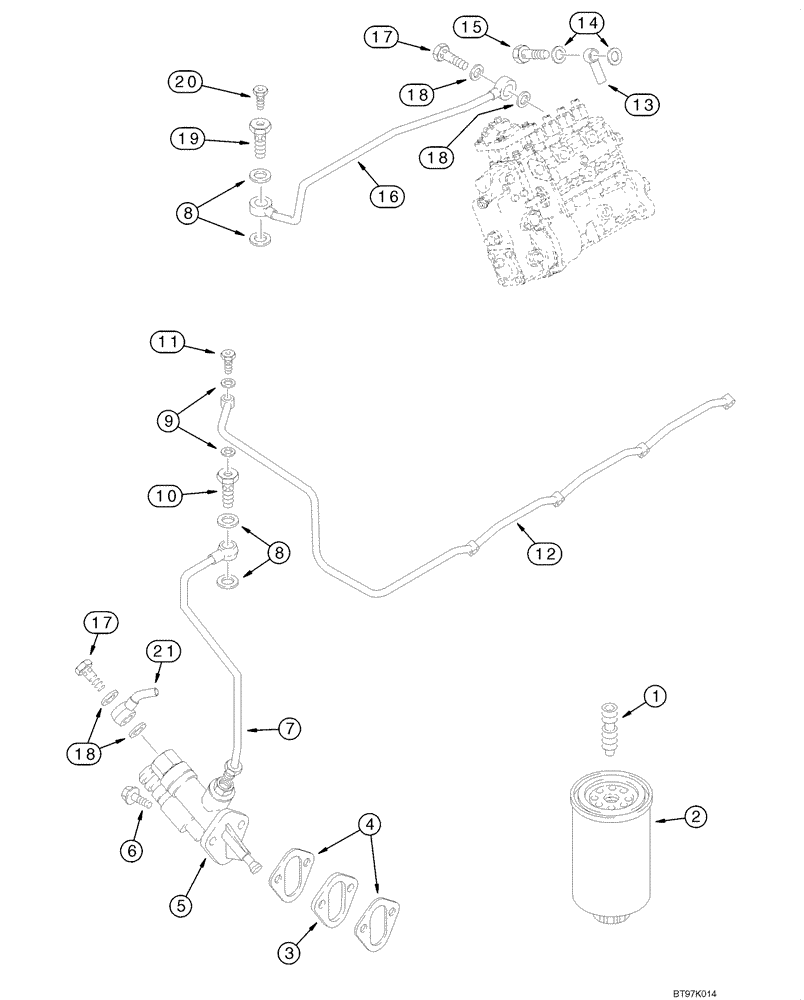

Запчасти Case CX160 (03-05) - FUEL FILTER - PUMP, LIFT (03) - FUEL SYSTEM

4TA-390 Emissions Certified Engine

1шт.

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J286503

FUEL FILTER

Replaces J931062

1шт.

3

J914284

SPACER

1шт.

4

J939258

GASKET,1.21mm Thk

Replaces J931059

2шт.

5

J936323

PUMP

Lift

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J917280

FUEL TUBE,8 mm OD x 231 mm L

1шт.

8

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

Special, Replaces J935171

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

10

J916361

BANJO BOLT

M12 x 24

1шт.

11

J924726

BANJO BOLT

1шт.

12

J933660

MANIFOLD

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

15

J932096

VALVE

1шт.

16

J936348

FUEL TUBE,8 mm OD x 232.2, 46.1 mm L

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

2шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

4шт.

J905860

BANJO BOLT

Incl. 19, 20, No Longer A Service Part, For Service Order Component Parts

1шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

20

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

Replaces J905403

1шт.

21

J933320

FUEL TUBE,10 mm OD x 60, 15 mm L

1шт.
