Запчасти Case CX160 (02-23) - GASKET KIT, BASIC ENGINE (02) - ENGINE

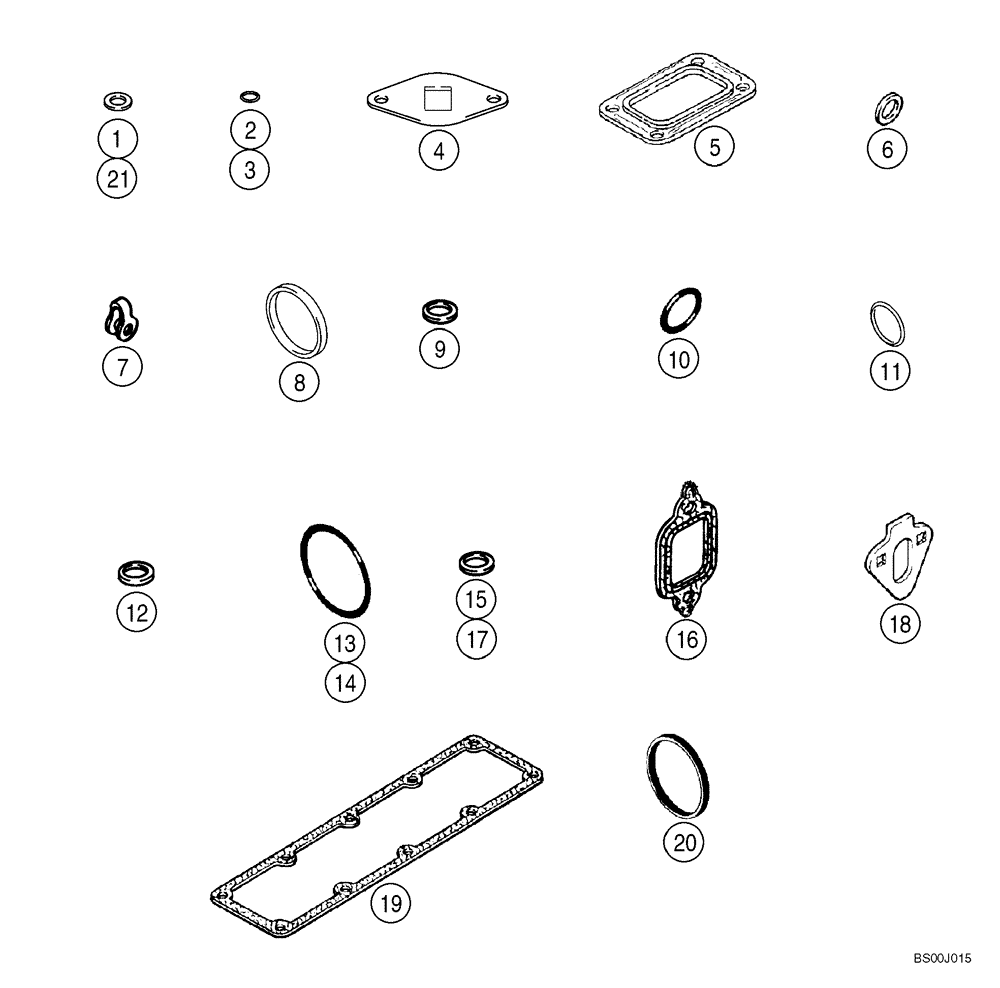

Схема запчастей Case CX160 - (02-23) - GASKET KIT, BASIC ENGINE (02) - ENGINE
17
16
10
13
20
14
6
12
5
4
11
2
15
19
3
8
1
7
18
9
21

Артикул

Название

Примечание

Количество

4TA-390 Emissions Certified Engine

1шт.

Basic Service Engine

1шт.

A77994

GASKET KIT

Incl. 1 - 21

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

See Figure 02-08, Ref. 26

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

Not Used In This Application

2шт.

3

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

See Fig 03-07, Ref 27A

1шт.

4

J937706

GASKET,0.79mm Thk

See Figure 02-08, REF 11, Replaces J285747

2шт.

5

J919369

GASKET,0.5mm Thk

See Figure 02-08, REF 2

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-12, REF 12

1шт.

7

J903380

SEAL

See Figure 03-04, REF 9

4шт.

8

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-06, REF 20

1шт.

9

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm, See Figure 03-08, REF 3, Replaces J906659

4шт.

10

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, See Figure 02-17, REF 7

1шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure 02-16, REF 32

1шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-08, REF 2

4шт.

13

J910517

O-RING

See Figure 02-16, REF 41

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-19, REF 2

1шт.

15

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm, Not Used In This Application

4шт.

16

J927154

GASKET,0.38mm Thk

See Figure 02-07, REF 2

4шт.

17

J930324

SEAL

0,5 mm, Not Used In This Application

4шт.

18

J939258

GASKET,1.21mm Thk

See Figure 03-05, REF 4, Replaces J931059

2шт.

19

J938153

MANIFOLD GASKET,0.8mm Thk

See Figure 02-07, REF 5

1шт.

20

J935032

SEAL

80 mm ID, See Figure 03-07, REF 37

1шт.

21

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1,5 mm, See Figure 03-05, REF 8, Replaces J935171

4шт.
