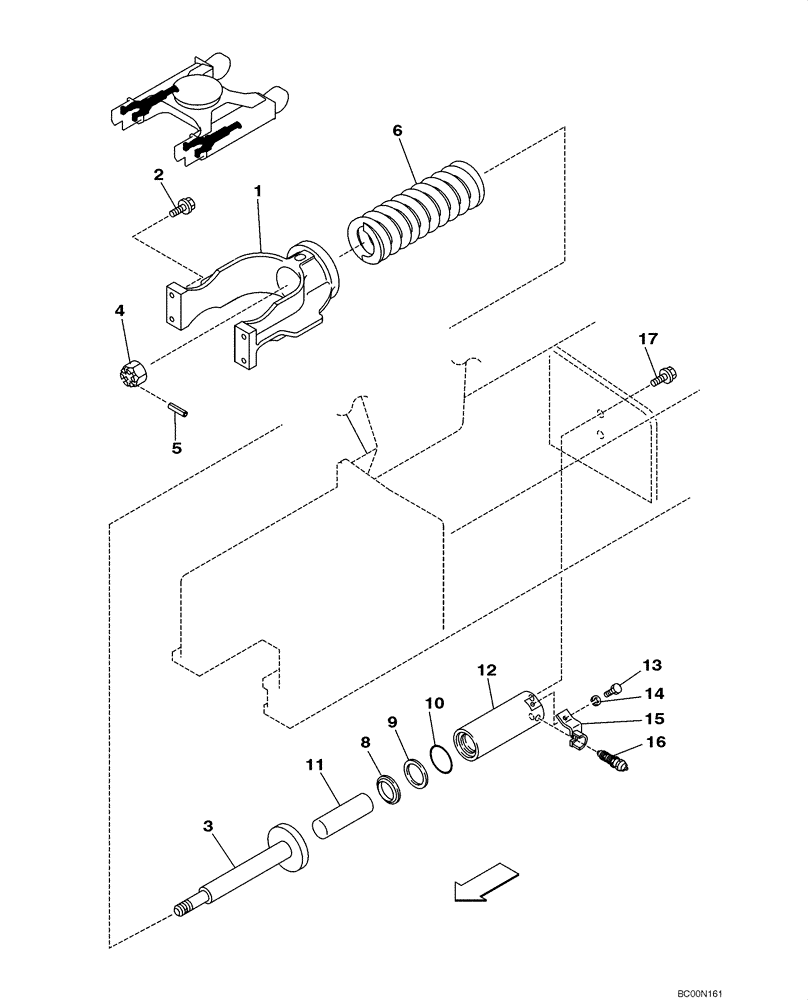

Запчасти Case CX160 (05-09) - TRACK - ADJUSTER (11) - TRACKS/STEERING

1

KLA0152

FORK

2шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

3

KLA0144

ROD

2шт.

4

283647A1

SLOTTED NUT

2шт.

5

738-1880

LOCK PIN,8mm OD x 80mm L, Slotted

2шт.

6

KLA0141

SPRING

2шт.

KLA0142

CYLINDER

Track Adjuster, Incl. 8 - 16

2шт.

8

154656A1

O-RING

1шт.

9

KNA0453

BACK-UP RING

Replaces 154095A1

1шт.

10

150557A1

SEAL,65mm ID x 79mm OD x 11mm Thk

1шт.

11

KLA0150

JACK PISTON

1шт.

12

KLA0143

TUBE

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

KLA0151

BRACKET

1шт.

16

150107A1

LUBE NIPPLE

1шт.

17

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

4шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.
